Specification	192116

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 9258, LMR-240
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	FME
Connector Type	Jack, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	1 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp

1921 Series

Part	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Center Contact Material	Body Material	Convert From (Adapter End)	Conversion Type	Center Contact Plating	Mounting Type	Frequency - Max	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Fastening Type	Style	Adapter Series	Adapter Type	Center Gender	Impedance	Contact Termination	Features	Housing Color	Cable Group	Shield Termination	Number of Ports	Connector Type	Connector Style	Includes	Includes Total Count	Mating Cycles	Convert To (Adapter End)

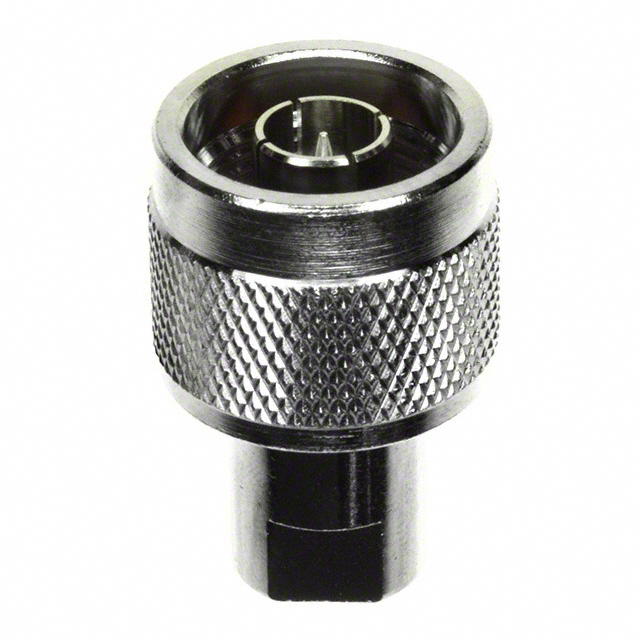

McGill Microwave Systems 192109	Nickel	-40 °C	85 °C	Polytetrafluoroethylene (PTFE)	Brass	Brass	FME Plug Male Pin	Between Series	Silver	Free Hanging (In-Line)	1 GHz	N Plug	Male Pin	Threaded	Straight	N to FME	Plug to Plug	Male	50 Ohm
McGill Microwave Systems 192111	Nickel			Polyoxymethylene (POM) Acetal	Phosphor Bronze	Brass			Gold	Free Hanging (In-Line)	200 MHz			Threaded					50 Ohm	Solder	Rotating Nipple	Silver	188 188A 316 LMR-100 M17/119-RG174 RG-174	Crimp	1	Female Socket Jack	FME	Connector Contact Ferrule Nut Sleeve	5 pcs	500 cycles
McGill Microwave Systems 192114	Nickel			Polytetrafluoroethylene (PTFE)	Brass	Brass			Gold	Free Hanging (In-Line)	200 MHz			Threaded					50 Ohm	Solder		Silver	188 188A 316 LMR-100 M17/119-RG174 RG-174	Crimp	1	Male Pin Plug	FME	Connector Contact Ferrule	3 pcs	500 cycles
McGill Microwave Systems 192116	Nickel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Phosphor Bronze	Brass			Gold	Free Hanging (In-Line)	1 GHz			Threaded					50 Ohm	Crimp		Silver	Belden 9258 LMR-240	Crimp	1	Female Socket Jack	FME			500 cycles
McGill Microwave Systems 192104	Nickel	-40 °C	85 °C	Polyoxymethylene (POM)	Brass	Brass	FME Plug Male Pin	Between Series	Gold	Free Hanging (In-Line)	1 GHz	BNC Plug	Male Pin	Bayonet Lock Threaded	Straight	BNC to FME	Plug to Plug	Male	50 Ohm
McGill Microwave Systems 192103	Gold	-65 °C	165 °C	Polyoxymethylene (POM) Acetal	Brass	Brass	FME Plug Male Pin	Same Series	Gold	Free Hanging (In-Line)	1 GHz			Threaded	Straight	FME to FME	Plug to Plug	Male	50 Ohm												FME Plug Male Pin
McGill Microwave Systems 192113	Nickel	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Brass	Male Pin SMA Plug	Between Series	Gold	Free Hanging (In-Line)	1 GHz			Threaded	Straight	SMA to FME	Plug to Plug	Male	50 Ohm												FME Plug Male Pin
