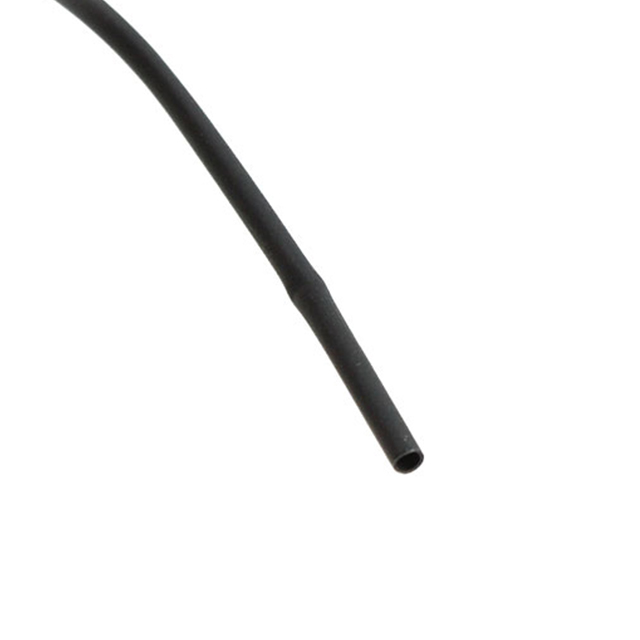

MT5000-1/2-0-SP

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 1/2" BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MT5000-1/2-0-SP

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 1/2" BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MT5000-1/2-0-SP

Color	Black
Features	Abrasion Resistant, Strain Resistant, Solvent Resistant
Inner Diameter - Recovered [diameter]	0.25 in
Inner Diameter - Recovered [diameter]	6.35 mm
Inner Diameter - Supplied [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	0.5 in
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness [custom]	0.025 "
Recovered Wall Thickness [custom]	0.64 mm
Shrink Temperature	90 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

RAYCHEM MT5000 Series

Heat Shrink Tubing & Sleeves HS-TBG 4.75MM BK PRICE PER FT

Part	Color	Shrink Temperature	Features	Type	Material	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Inner Diameter - Recovered	Inner Diameter - Recovered	Spool Size [custom]	Spool Size [custom]	Length
TE Connectivity Raychem Cable Protection MT5000-3/8-X-SP	Clear	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated	0.025 "	0.64 mm	0.375 in	9.53 mm	-55 °C	150 °C	4.75 mm	0.187 in	2 to 1
TE Connectivity Raychem Cable Protection MT5000-3/4-X-SP	Clear	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated					-55 °C	150 °C	9.5 mm	0.374 "	2 to 1	0.76 mm	0.03 "
TE Connectivity Raychem Cable Protection MT5000-1/2-0-SP	Black	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated	0.025 "	0.64 mm	0.5 in	12.7 mm	-55 °C	150 °C	6.35 mm	0.25 in	2 to 1
TE Connectivity Raychem Cable Protection MT5000-1/8-0-SP	Black	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated			0.125 "	3.18 mm	-55 °C	150 °C	1.57 mm	0.062 in	2 to 1	0.51 mm		0.02 in
TE Connectivity Raychem Cable Protection MT5000-3/16-0-SP	Black	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated			0.187 in	4.75 mm	-55 °C	150 °C			2 to 1	0.51 mm		0.02 in	381 m	1250 ft	2.36 mm	0.093 in	1250 '	381 m	Enter Number of Feet in Order Quantity
TE Connectivity Raychem Cable Protection MT5000-1/8-9-SP	White	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated			0.125 "	3.18 mm	-55 °C	150 °C	1.57 mm	0.062 in	2 to 1	0.51 mm		0.02 in
TE Connectivity Raychem Cable Protection MT5000-NO.1-X-SP	Clear	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated					-55 °C	150 °C			2 to 1
TE Connectivity Raychem Cable Protection MT5000-3/8-6-SP	Blue	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated	0.025 "	0.64 mm	0.375 in	9.53 mm	-55 °C	150 °C	4.75 mm	0.187 in	2 to 1
TE Connectivity Raychem Cable Protection MT5000-3/8-0-SP	Black	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated	0.025 "	0.64 mm	0.375 in	9.53 mm	-55 °C	150 °C	4.75 mm	0.187 in	2 to 1
TE Connectivity Raychem Cable Protection MT5000-1-X-SP	Clear	90 °C	Abrasion Resistant Solvent Resistant Strain Resistant	Tubing Flexible	Polyolefin (PO) Irradiated			1 in	25.4 mm	-55 °C	150 °C	12.7 mm	0.5 in	2 to 1	0.89 mm		0.035 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.50
		1000	$ 2.45

Description

General part information

RAYCHEM MT5000 Series

Heat Shrink Tubing & Sleeves HS-TBG 4.75MM BK PRICE PER FT
