2825212-1
ActiveTE Connectivity AMP Connectors

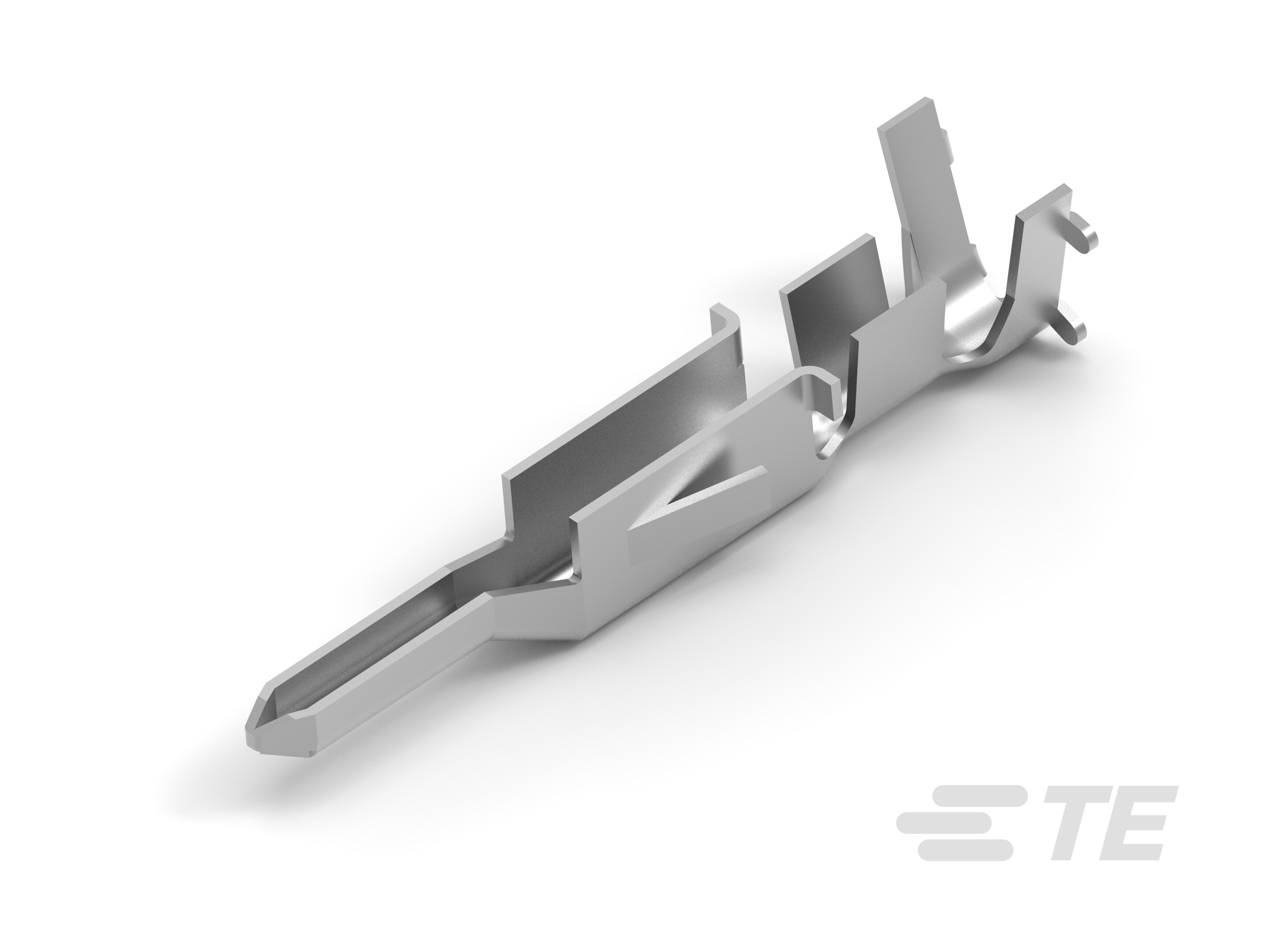

POWER TO THE BOARD VAL-U-LOK PIN HCS TN 24-18 LP
2825212-1
ActiveTE Connectivity AMP Connectors
POWER TO THE BOARD VAL-U-LOK PIN HCS TN 24-18 LP
Description
General part information
2825212 Series
Pin Contact, Tin (Sn), 600 VAC, 22 – 18 AWG, .33 – .82 mm² Wire, Crimp, Copper Alloy, Power, -40 – 105 °C [-40 – 221 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2825212-1 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 100 µin |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Power |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
