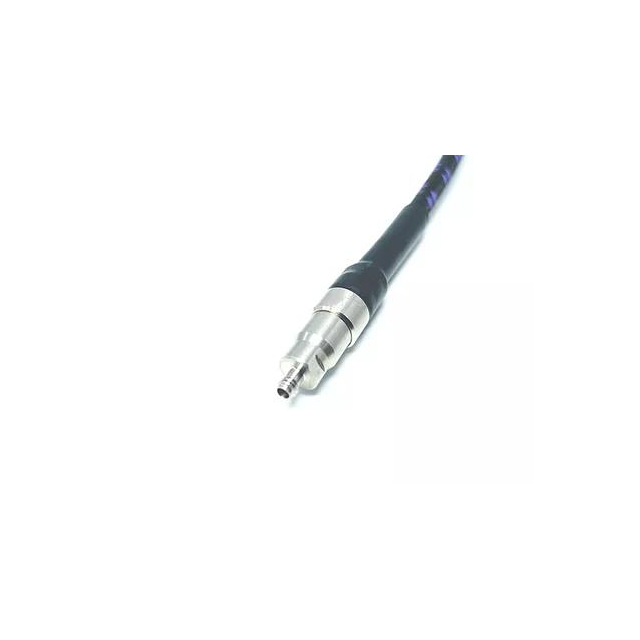

WT110-WF1WF1-12INCH

Active

WITHWAVE CO LTD

COAX CBL 1.0MM TO 1.0MM 12"

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

COAX CBL 1.0MM TO 1.0MM 12"

Technical Specifications

Parameters and characteristics for this part

COAX CBL 1.0MM TO 1.0MM 12"

Part	1st Connector Mounting Type	Length	Length	1st Connector	2nd Connector	Color	2nd Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	2nd Contact Gender	Style [Min]	Style [Max]	Operating Temperature [Min]	Operating Temperature [Max]	1st Contact Gender
WITHWAVE CO LTD WT110-WF1WF1-12INCH	Free Hanging (In-Line)	12 "	304.8 mm	1.0mm Jack	1 mm	Black	Free Hanging (In-Line)	110 GHz	50 Ohms	Female	1 mm	1 mm	-55 °C	125 °C	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 1.0mm to 1.0mm 12.00" (304.80mm)
