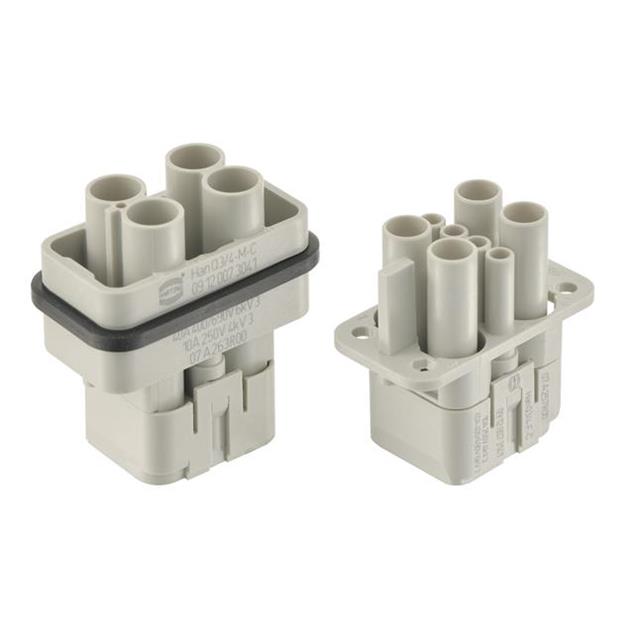

Specification	09120073141

Color	Gray
Connector Type	Insert without Contacts
Gender	Female
Housing Material	PC, Polycarbonate
Material Flammability Rating	UL94 V-0
Number of Positions	3, Ground, 4
Number of Positions	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Position Types	Ground
Termination Style	Crimp

09120073 Series

Part	Material Flammability Rating	Housing Material	Color	Gender	Contact Type	Voltage Rating	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Size	Number of Positions	Current Rating	Number of Positions	Position Types
HARTING 09120073101	UL94 V-0	PC Polycarbonate	Gray	Female	Han® DD	600 V	Crimp	125 °C	-40 °C	Insert without Contacts	3A	7	10 A
HARTING 09120073001	UL94 V-0	PC Polycarbonate	Gray	Male	Han® D	600 V	Crimp	125 °C	-40 °C	Insert without Contacts	3A	7	10 A
HARTING 09120073141	UL94 V-0	PC Polycarbonate	Gray	Female			Crimp	125 °C	-40 °C	Insert without Contacts		3		3 4 Ground	Ground
