AOK30B120D2

Alpha & Omega Semiconductor Inc.

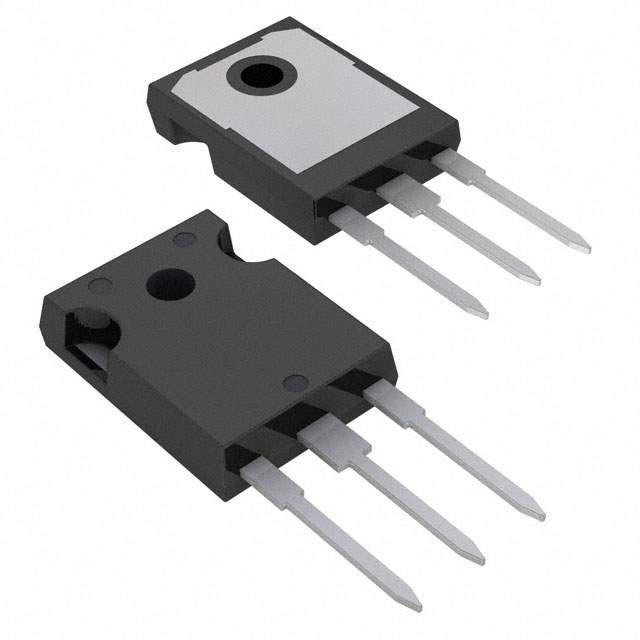

IGBT 1200V 30A TO-247

Search across all available documentation for this part.

Alpha & Omega Semiconductor Inc.

IGBT 1200V 30A TO-247

Technical Specifications

Parameters and characteristics for this part

Specification	AOK30B120D2

Current - Collector (Ic) (Max) [Max]	60 A
Current - Collector Pulsed (Icm)	120 A
Gate Charge	67 nC
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Power - Max [Max]	340 W
Supplier Device Package	TO-247
Switching Energy	1.28 mJ
Td (on/off) @ 25°C [Max]	115 ns
Td (on/off) @ 25°C [Min]	-
Test Condition	600 V, 30 A, 15 V, 10 Ohm
Vce(on) (Max) @ Vge, Ic	2.2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Switching Energy	Current - Collector Pulsed (Icm)	Current - Collector (Ic) (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Td (on/off) @ 25°C [Min]	Td (on/off) @ 25°C [Max]	Vce(on) (Max) @ Vge, Ic	Package / Case	Supplier Device Package	Test Condition	Gate Charge	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]
Alpha & Omega Semiconductor Inc. AOK30B120D2	1.28 mJ	120 A	60 A	Through Hole	1200 V	-	115 ns	2.2 V	TO-247-3	TO-247	10 Ohm 15 V 30 A 600 V	67 nC	-55 °C	175 ░C	340 W
Alpha & Omega Semiconductor Inc. AOK30B135W1	1.47 mJ	200 A	60 A	Through Hole	1350 V			2.2 V	TO-247-3	TO-247	10 Ohm 15 V 30 A 600 V	62 nC	-55 °C	175 ░C	340 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	240	$ 2.95

General part information

IGBT 1200 V 60 A 340 W Through Hole TO-247
