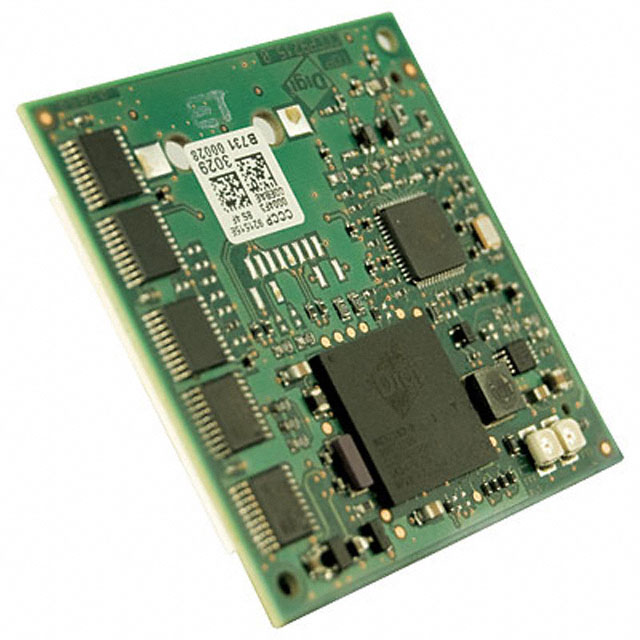

CC-9P-V524-LX

Digi

RF TXRX MODULE WIFI U.FL SMD

Search across all available documentation for this part.

Digi

RF TXRX MODULE WIFI U.FL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CC-9P-V524-LX	CC-9P-V524 Series

Antenna Type	Antenna Not Included, U.FL	Antenna Not Included, U.FL
Data Rate	54 Mbps	54 Mbps
Frequency	5 GHz, 2.4 GHz	2.4 - 5 GHz
Memory Size [custom]	32 MB	32 MB
Memory Size [custom]	16 MB	16 MB
Modulation	QPSK, DQPSK, CCK, DBPSK, 64QAM, BPSK, 16QAM	QPSK, DQPSK, CCK, DBPSK, 64QAM, BPSK, 16QAM
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	12 dBm	12 dBm
Protocol	800.11g, 802.11a, 802.11b	800.11g, 802.11a, 802.11b
RF Family/Standard	WiFi	WiFi
Sensitivity	-72 dBm	-72 dBm
Serial Interfaces	I2C, UART, Ethernet, SPI	I2C, UART, Ethernet, SPI
Utilized IC / Part	NS9215	NS9215
Voltage - Supply	3.3 V	3.3 V

RF TXRX MODULE WIFI U.FL SMD

Part	Frequency	Modulation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Protocol	Memory Size [custom]	Memory Size [custom]	Package / Case	RF Family/Standard	Antenna Type	Sensitivity	Serial Interfaces	Power - Output	Voltage - Supply	Data Rate
Digi CC-9P-V524-C	2.4 GHz, 5 GHz	16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	Surface Mount	85 °C	-40 °C	NS9215	800.11g, 802.11a, 802.11b	32 MB	16 MB	Module	WiFi	Antenna Not Included, U.FL	-72 dBm	Ethernet, I2C, SPI, UART	12 dBm	3.3 V	54 Mbps
Digi CC-9P-V524-LX	2.4 GHz, 5 GHz	16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	Surface Mount	85 °C	-40 °C	NS9215	800.11g, 802.11a, 802.11b	32 MB	16 MB	Module	WiFi	Antenna Not Included, U.FL	-72 dBm	Ethernet, I2C, SPI, UART	12 dBm	3.3 V	54 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 150.78

General part information

WiFi 802.11a/b/g Transceiver Module 2.4GHz, 5GHz Antenna Not Included, U.FL Surface Mount

Technical documentation and resources

No documents available
