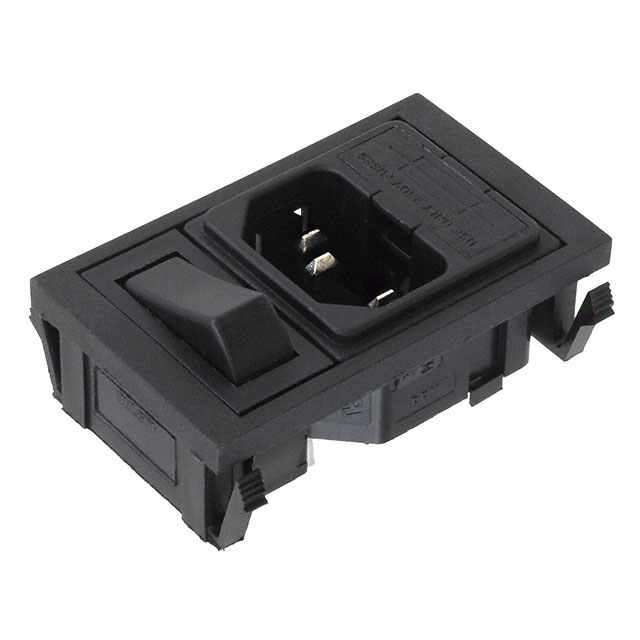

BZV01/Z0000/01

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BZV01/Z0000/01

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.40
		10	$ 14.54
		25	$ 13.98
		50	$ 13.42
		100	$ 12.67
		250	$ 11.55
		500	$ 10.81
		1000	$ 9.91

Description

General part information

BZV01/Z Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BZV01/Z0000/01	BZV01/Z Series

Accomodates a Fuse	True	True
Approval Agency	VDE, CSA, UL, ENEC	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	34.4 mm	34.4 mm
Panel Cutout Dimensions [y]	56.6 mm	56.6 - 70.1 mm
Panel Thickness [Max]	3 mm	3 mm
Panel Thickness [Max]	0.118 in	0.118 in
Panel Thickness [Min]	0.039 in	0.039 in
Panel Thickness [Min]	1 mm	1 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

BZV01/Z Series

CONN, IEC C14 INLET, 15A/250VAC, PANEL ROHS COMPLIANT: YES

Part	Material Flammability Rating	Fuse Holder, Drawer	Switch Features	Connector Type	Connector Style	Termination	Termination	Termination	Current Rating - Appliance Inlet	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet	Filter Type	Mounting Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
BULGIN LIMITED BZV01/Z0000/11	UL94 V-0	Fuse Holder	Switch On-Off	Receptacle, Male Blades - Module	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	10 A	CSA, ENEC, UL, VDE	70.1 mm	34.4 mm	250 VAC	Unfiltered - Commercial	Panel Mount, Snap-In	3 mm	0.118 in	0.039 in	1 mm
BULGIN LIMITED BZV01/Z0000/13	UL94 V-0	Fuse Holder	Switch On-Off	Receptacle, Male Blades - Module	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	10 A	CSA, ENEC, UL, VDE	70.1 mm	34.4 mm	250 VAC	Unfiltered - Commercial	Panel Mount, Snap-In	3 mm	0.118 in	0.039 in	1 mm
BULGIN LIMITED BZV01/Z0000/08	UL94 V-0	Fuse Holder	Switch On-Off	Receptacle, Male Blades - Module	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	10 A	CSA, ENEC, UL, VDE	56.6 mm	34.4 mm	250 VAC	Unfiltered - Commercial	Panel Mount, Snap-In	3 mm	0.118 in	0.039 in	1 mm
BULGIN LIMITED BZV01/Z0000/02	UL94 V-0	Fuse Holder	Switch On-Off	Receptacle, Male Blades - Module	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	10 A	CSA, ENEC, UL, VDE	56.6 mm	34.4 mm	250 VAC	Unfiltered - Commercial	Panel Mount, Snap-In	3 mm	0.118 in	0.039 in	1 mm
BULGIN LIMITED BZV01/Z0000/12	UL94 V-0	Fuse Holder	Switch On-Off	Receptacle, Male Blades - Module	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	10 A	CSA, ENEC, UL, VDE	70.1 mm	34.4 mm	250 VAC	Unfiltered - Commercial	Panel Mount, Snap-In	3 mm	0.118 in	0.039 in	1 mm
BULGIN LIMITED BZV01/Z0000/10	UL94 V-0	Fuse Holder	Switch On-Off	Receptacle, Male Blades - Module	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	10 A	CSA, ENEC, UL, VDE	70.1 mm	34.4 mm	250 VAC	Unfiltered - Commercial	Panel Mount, Snap-In	3 mm	0.118 in	0.039 in	1 mm
BULGIN LIMITED BZV01/Z0000/01	UL94 V-0	Fuse Holder	Switch On-Off	Receptacle, Male Blades - Module	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	10 A	CSA, ENEC, UL, VDE	56.6 mm	34.4 mm	250 VAC	Unfiltered - Commercial	Panel Mount, Snap-In	3 mm	0.118 in	0.039 in	1 mm
BULGIN LIMITED BZV01/Z0000/46	UL94 V-0	Fuse Holder	Switch On-Off	Receptacle, Male Blades - Module	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	10 A	CSA, ENEC, UL, VDE	56.6 mm	34.4 mm	250 VAC	Unfiltered - Commercial	Panel Mount, Snap-In	3 mm	0.118 in	0.039 in	1 mm
