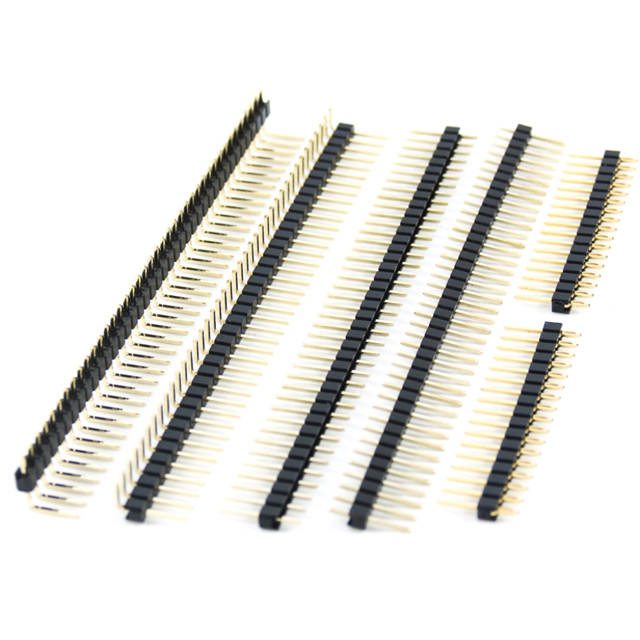

2011-1X12G00SB027B

Active

Oupiin

PIN HEADER, SINGLE ROW, 12 PIN,

Search across all available documentation for this part.

Active

Oupiin

PIN HEADER, SINGLE ROW, 12 PIN,

Technical Specifications

Parameters and characteristics for this part

Specification	2011-1X12G00SB027B

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.457 "
Overall Contact Length	11.6 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

PIN HEADER, SINGLE ROW, 12 PIN,

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Shape	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Material	Current Rating (Amps)	Termination	Shrouding	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Number of Rows	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Contact Length - Mating	Contact Length - Mating [x]	Connector Type	Number of Positions	Overall Contact Length	Overall Contact Length	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type
Oupiin 2011-1X12G00SB027B	-40 °C	105 ░C	0.118 in	3 mm	Push-Pull	Square	Gold	All	Flash	Brass	3 A	Solder	Unshrouded	UL94 V-0	0.098 in	2.5 mm	1	Flash	Gold	Black	6.1 mm	0.24 in	Header	12	0.457 "	11.6 mm	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Male Pin	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 12 position 0.100" (2.54mm)

Technical documentation and resources

No documents available
