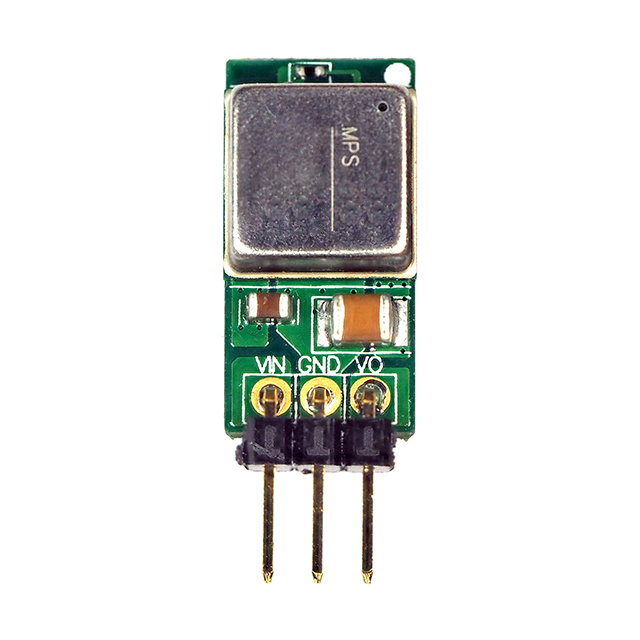

MEZD74800A-B

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 5V

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 5V

Technical Specifications

Parameters and characteristics for this part

Specification	MEZD74800A-B

Applications	ITE (Commercial)
Current - Output (Max) [Max]	300 mA
Features	OVP, UVLO, SCP, OCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Size / Dimension [x]	20 mm
Size / Dimension [x]	0.79 in
Size / Dimension [y]	0.39 "
Size / Dimension [y]	10 mm
Size / Dimension [z]	0.16 in
Size / Dimension [z]	4 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1	5 V

Part	Type	Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Package / Case
MONOLITHIC POWER SYSTEMS (MPS) MEZD74800A-B	Linear Regulator Replacement	OCP OTP OVP SCP UVLO	300 mA	4.5 V	1	5 V	Through Hole	ITE (Commercial)	85 °C	-40 °C	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	75 V	3-SIP Module
MONOLITHIC POWER SYSTEMS (MPS) MEZD74800A-A	Linear Regulator Replacement	OCP OTP OVP SCP UVLO	300 mA	4.5 V	1	3.3 V	Through Hole	ITE (Commercial)	85 °C	-40 °C	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	75 V	3-SIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Regulator Replacement DC DC Converter 1 Output 5V 300mA 4.5V - 75V Input
