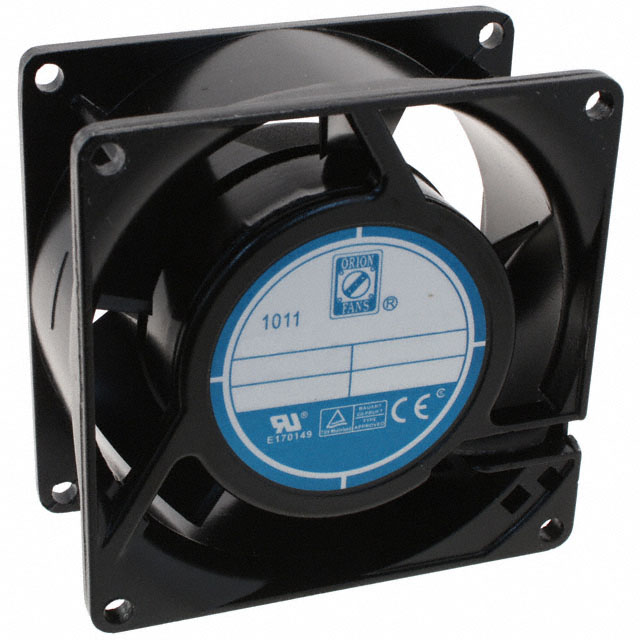

OA80AP-11-3TB

Active

Orion Fans

FAN AXIAL 80X38MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

OA80AP-11-3TB

Active

Orion Fans

FAN AXIAL 80X38MM 115VAC TERM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA80AP-11-3TB

Air Flow	17 CFM
Air Flow	0.476 m³/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	100 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	28 dB
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	9 W
RPM	1950 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	17.4 Pa
Static Pressure	0.07 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	126 VAC
Voltage Range [Min]	103 VAC
Width [y]	38 mm

OA80AP Series

Part	Width [y]	Approval Agency	Termination	Ingress Protection	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Power (Watts)	Air Flow	Air Flow	Material - Blade	Noise	RPM	Lifetime @ Temp.	Material - Frame	Bearing Type	Fan Type	Voltage - Rated	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
Orion Fans OA80AP-11-1TB1855	38 mm	cURus TUV	2 Terminals	IP55 - Dust Protected Water Resistant	120 VAC	100 VAC	0.22 in H2O	54.8 Pa	80 mm	80 mm	0.95 lb	430.91 g	13 W	0.924 mł/min	33 CFM	Metal	35 dB	3200 RPM	50000 Hrs	Aluminum	Ball	Tubeaxial	115 VAC
Orion Fans OA80AP-22-3WB	38 mm	cURus TUV	2 Wire Leads		260 VAC	160 VAC	0.07 in H2O	17.4 Pa	80 mm	80 mm			12 W	0.476 m³/min	17 CFM	Polybutylene Terephthalate (PBT)	28 dB	1950 RPM	60000 Hrs	Aluminum	Ball	Tubeaxial	230 VAC	40 mA	80 C	80 °C	-20 °C	-20 C
Orion Fans OA80AP-11-3TB	38 mm	cURus TUV	2 Terminals		126 VAC	103 VAC	0.07 in H2O	17.4 Pa	80 mm	80 mm			9 W	0.476 m³/min	17 CFM	Polybutylene Terephthalate (PBT)	28 dB	1950 RPM	60000 Hrs	Aluminum	Ball	Tubeaxial	115 VAC	100 mA	80 C	80 °C	-20 °C	-20 C
Orion Fans OA80AP-11-1WB	38 mm	cURus TUV	2 Wire Leads		126 VAC	103 VAC	0.22 in H2O	54.8 Pa	80 mm	80 mm			9 W	0.84 mł/min	30 CFM	Polybutylene Terephthalate (PBT)	36 dB	3000 RPM	60000 Hrs	Aluminum	Ball	Tubeaxial	115 VAC	120 mA	80 C	80 °C	-20 °C	-20 C
Orion Fans OA80AP-11-2WB	38 mm	cURus TUV	2 Wire Leads		126 VAC	103 VAC			80 mm	80 mm			9 W	0.7 mł/min	25 CFM	Polybutylene Terephthalate (PBT)	32 dB	2400 RPM	60000 Hrs	Aluminum	Ball	Tubeaxial	115 VAC	120 mA	80 C	80 °C	-20 °C	-20 C
Orion Fans OA80AP-22-2TB	38 mm	cURus TUV	2 Terminals		260 VAC	160 VAC			80 mm	80 mm			12 W	0.7 mł/min	25 CFM	Polybutylene Terephthalate (PBT)	32 dB	2400 RPM	60000 Hrs	Aluminum	Ball	Tubeaxial	230 VAC	50 mA	80 C	80 °C	-20 °C	-20 C
Orion Fans OA80AP-11-3WB	38 mm	cURus TUV	2 Wire Leads		126 VAC	103 VAC	0.07 in H2O	17.4 Pa	80 mm	80 mm			9 W	0.476 m³/min	17 CFM	Polybutylene Terephthalate (PBT)	28 dB	1950 RPM	60000 Hrs	Aluminum	Ball	Tubeaxial	115 VAC	100 mA	80 C	80 °C	-20 °C	-20 C
Orion Fans OA80AP-22-1WB	38 mm	cURus TUV	2 Wire Leads		260 VAC	160 VAC	0.22 in H2O	54.8 Pa	80 mm	80 mm			12 W	0.84 mł/min	30 CFM	Polybutylene Terephthalate (PBT)	36 dB	3000 RPM	60000 Hrs	Aluminum	Ball	Tubeaxial	230 VAC	60 mA	80 C	80 °C	-20 °C	-20 C
Orion Fans OA80AP-11-1TS	38 mm	cURus TUV	2 Terminals		126 VAC	103 VAC	0.22 in H2O	54.8 Pa	80 mm	80 mm			9 W	0.84 mł/min	30 CFM	Polybutylene Terephthalate (PBT)	36 dB	3000 RPM	30000 Hrs	Aluminum	Sleeve	Tubeaxial	115 VAC	120 mA	50 °C	50 °C	-10 °C	-10 °C
Orion Fans OA80AP-11-1WB1855	38 mm	cURus TUV	2 Wire Leads	IP55 - Dust Protected Water Resistant	120 VAC	100 VAC	0.22 in H2O	54.8 Pa	80 mm	80 mm	0.95 lb	430.91 g	13 W	0.924 mł/min	33 CFM	Metal	35 dB	3200 RPM	50000 Hrs	Aluminum	Ball	Tubeaxial	115 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.46
		10	$ 19.14
		40	$ 17.86
		80	$ 17.25
		120	$ 16.90
		280	$ 16.20
		520	$ 15.71

Description

General part information

OA80AP Series

Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 17.0 CFM (0.476m³/min) 2 Terminals
