UPS835LE3/TR13

Active

Microchip Technology

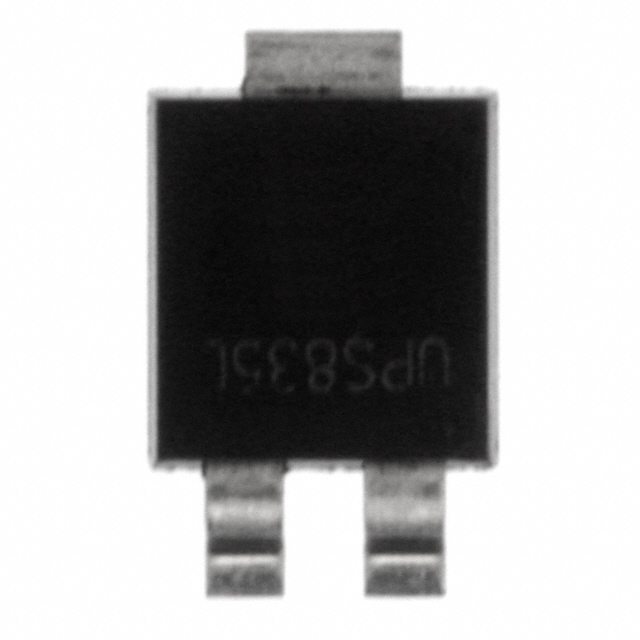

DIODE SCHOTTY 3-PIN(2+TAB) 8.0A, 35V, VF=0.41V POWERMITE3 T/R

Search across all available documentation for this part.

Active

Microchip Technology

DIODE SCHOTTY 3-PIN(2+TAB) 8.0A, 35V, VF=0.41V POWERMITE3 T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPS835LE3/TR13	UPS835 Series

Current - Average Rectified (Io)	8 A	8 A
Current - Reverse Leakage @ Vr	1.4 mA	1.4 mA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	125 °C	125 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	Powermite®3	Powermite®3
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	Powermite 3	Powermite 3
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	35 V	35 V
Voltage - Forward (Vf) (Max) @ If	510 mV	510 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.43
	Digi-Reel®	1	$ 1.43
	Tape & Reel (TR)	5000	$ 0.80
Microchip Direct	N/A	1	$ 0.87
		100	$ 0.80
		500	$ 0.77
		1000	$ 0.73

Diode Schotty 3-Pin(2+Tab) 8.0A, 35V, VF=0.41V PowerMite3 T/R

Part	Supplier Device Package	Current - Average Rectified (Io)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Technology	Package / Case	Speed	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]
Microchip Technology UPS835LE3/TR13	Powermite 3	8 A	-55 °C	125 °C	Schottky	Powermite®3	200 mA, 500 ns	510 mV	Surface Mount	1.4 mA	35 V
Microchip Technology UPS835L/TR13	Powermite 3	8 A	-55 °C	125 °C	Schottky	Powermite®3	200 mA, 500 ns	510 mV	Surface Mount	1.4 mA	35 V

General part information

Low Profile – Low VF Provides Higher Efficiency.
