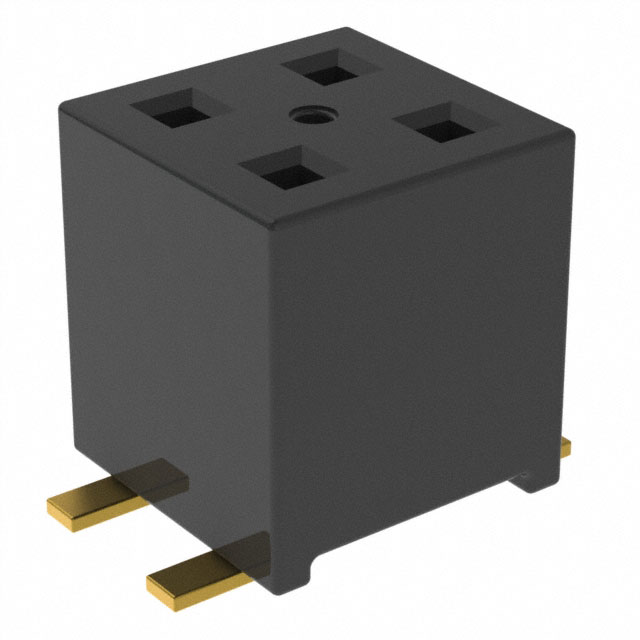

TLE-102-01-G-DV-TR

Active

Samtec Inc.

CONN RCPT 4POS 0.079 GOLD SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 4POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	TLE-102-01-G-DV-TR

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Termination	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Insulation Height	Insulation Height	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Mounting Type	Number of Positions	Connector Type	Style	Contact Finish - Mating	Contact Material	Contact Shape	Current Rating (Amps)	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post
Samtec Inc. TLE-102-01-G-DV	Solder	0.079 in	2 mm	Push-Pull	0.177 in	4.5 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	All	10 çin	0.25 çm	2	Surface Mount	4	Pass Through Receptacle	Board to Board Cable	Gold	Phosphor Bronze	Square	3.2 A	Black	Female Socket	-55 °C	125 °C
Samtec Inc. TLE-102-01-G-DV-TR	Solder	0.079 in	2 mm	Push-Pull	0.177 in	4.5 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	All	10 çin	0.25 çm	2	Surface Mount	4	Pass Through Receptacle	Board to Board Cable	Gold	Phosphor Bronze	Square	3.2 A	Black	Female Socket	-55 °C	125 °C	Gold
