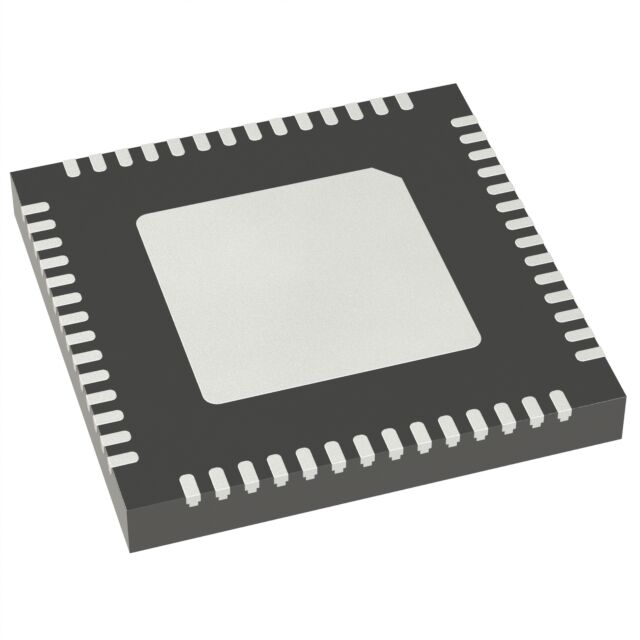

ESP32-S3R8V
ObsoleteEspressif Systems
IC RF TXRX+MCU BLE 56QFN
Deep-Dive with AI
Search across all available documentation for this part.
ESP32-S3R8V
ObsoleteEspressif Systems
IC RF TXRX+MCU BLE 56QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ESP32-S3R8V | ESP32-S3 Series |
|---|---|---|
| Antenna Type | - | Antenna Not Included, U.FL, PCB Trace, Antenna Not Included |
| Contents | - | Accessories, Board(s) |
| Current - Receiving | - | 91 - 100 mA |
| Current - Receiving | - | 88 - 97 mA |
| Current - Transmitting | - | 330 - 355 mA |
| Current - Transmitting | - | 273 - 285 mA |
| Data Rate | - | 150 Mbps |
| Data Rate (Max) | 150 Mbps | 150 Mbps |
| Embedded | - | False, True |
| For Use With/Related Products | - | ESP32-S3-WROOM-1-N8, ESP32-S3-WROOM-2-N32R8V, ESP32-S3, ESP32-S3-WROOM-1-N8R2, ESP32-S3-WROOM-1U-N8R8, ESP32-S3-WROOM-1U-N8R2, ESP32-S3-WROOM-1U-N8 |
| Frequency | - | 2.4 GHz |
| Frequency [Max] | 2.484 GHz | 2.484 GHz |
| Frequency [Min] | 2.412 GHz | 2.412 GHz |
| Function | - | LCD Touch Screen, Voice Recognition |
| GPIO | 30 | 30 |
| Memory Size | 8 MB | 2 - 512 MB |
| Memory Size | - | 8 MB |
| Memory Size | - | 8 MB |
| Memory Size | - | 384 kB |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 65 - 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 56-VFQFN Exposed Pad | 41-SMD Module, 56-VFQFN Exposed Pad |
| Power - Output | 21 dBm | 20.5 - 21 dBm |
| Primary Attributes | - | 3.95 in |
| Primary Attributes | - | 480x480 |
| Protocol | Bluetooth v5.0, 802.11b/g/n | Bluetooth v5.0, 802.11b/g/n, 802.11a/b/g/n |
| RF Family/Standard | WiFi, Bluetooth | WiFi, Bluetooth |
| Secondary Attributes | - | Capacitive Touch Screen |
| Sensitivity | -98.4 dBm | -104.5 - -98.4 dBm |
| Serial Interfaces | - | SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC, PCM, SDIO, JTAG, IrDA |
| Supplied Contents | - | Board(s), Accessories, Cable(s) |
| Supplier Device Package | 56-QFN | 56-QFN |
| Supplier Device Package [x] | 7 | 7 |
| Supplier Device Package [y] | 7 | 7 |
| Type | TxRx + MCU | 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver, Display, Audio, 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), TxRx + MCU, Bluetooth® 5.x |
| Utilized IC / Part | - | ESP32-S3, GC9503CV, FT5x06, ESP32-S3-WROOM-1, ESP32-S3R2, ESP32-S3-MINI-1, ESP32-S3R8V |
| Voltage - Supply | 3.3 V | 3.3 V |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 1.8 - 3 V |
ESP32-S3 Series
ESP32-S3-WROOM-1-N8 DEV BRD
| Part | For Use With/Related Products | Supplied Contents | Type | Frequency | Memory Size | Antenna Type | RF Family/Standard | Current - Receiving [Max] | Current - Receiving [Min] | Data Rate | Package / Case | Mounting Type | Power - Output | Protocol | Serial Interfaces | Sensitivity | Current - Transmitting [Max] | Current - Transmitting [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Utilized IC / Part | Contents | Secondary Attributes | Primary Attributes | Primary Attributes | Function | Embedded | Frequency [Max] | Frequency [Min] | Voltage - Supply | Data Rate (Max) | GPIO | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Memory Size [custom] | Memory Size [custom] | Memory Size [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Espressif Systems ESP32-S3-DEVKITC-1-N8 | ESP32-S3-WROOM-1-N8 | Board(s) | 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver | 2.4 GHz | ||||||||||||||||||||||||||||||||||||
Espressif Systems ESP32-S3-WROOM-1U-N16R8 | 2.4 GHz | 8 MB, 16 MB, 384 kB | Antenna Not Included, U.FL | Bluetooth, WiFi | 97 mA | 95 mA | 150 Mbps | 41-SMD Module | Surface Mount | 20.5 dBm | 802.11b/g/n, Bluetooth v5.0 | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | -103.5 dBm | 355 mA | 285 mA | 65 °C | -40 °C | 3.6 V | 3 V | |||||||||||||||||||||
Espressif Systems ESP32-S3-DEVKITC-1-N32R8V | ESP32-S3-WROOM-2-N32R8V | Board(s) | 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver | 2.4 GHz | ||||||||||||||||||||||||||||||||||||
Espressif Systems ESP32-S3-WROOM-1-N4 | 2.4 GHz | 4 MB, 384 kB | PCB Trace | Bluetooth, WiFi | 97 mA | 95 mA | 150 Mbps | 41-SMD Module | Surface Mount | 20.5 dBm | 802.11b/g/n, Bluetooth v5.0 | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | -103.5 dBm | 355 mA | 285 mA | 85 °C | -40 °C | 3.6 V | 3 V | ESP32-S3 | ||||||||||||||||||||
Espressif Systems ESP32-S3-LCD-EV-BOARD | Accessories, Board(s) | Display | ESP32-S3-WROOM-1, FT5x06, GC9503CV | Accessories, Board(s) | Capacitive Touch Screen | 3.95 in | 480x480 | LCD Touch Screen | ||||||||||||||||||||||||||||||||
Espressif Systems ESP32-S3-WROOM-1-N16R2 | 2.4 GHz | PCB Trace | Bluetooth, WiFi | 97 mA | 95 mA | 150 Mbps | 41-SMD Module | Surface Mount | 20.5 dBm | 802.11b/g/n, Bluetooth v5.0 | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | -103.5 dBm | 355 mA | 285 mA | 85 °C | -40 °C | 3.6 V | 3 V | ESP32-S3R2 | |||||||||||||||||||||
Espressif Systems ESP32-S3-WROOM-1U-N16R2 | 2.4 GHz | Antenna Not Included, U.FL | Bluetooth, WiFi | 97 mA | 95 mA | 150 Mbps | 41-SMD Module | Surface Mount | 20.5 dBm | 802.11b/g/n, Bluetooth v5.0 | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | -103.5 dBm | 355 mA | 285 mA | 85 °C | -40 °C | 3.6 V | 3 V | ESP32-S3R2 | |||||||||||||||||||||
Espressif Systems ESP32-S3-WROOM-1U-N8R2 | 2.4 GHz | 2 MB, 8 MB, 384 kB | Antenna Not Included, U.FL | Bluetooth, WiFi | 97 mA | 95 mA | 150 Mbps | 41-SMD Module | Surface Mount | 20.5 dBm | 802.11b/g/n, Bluetooth v5.0 | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | -103.5 dBm | 355 mA | 285 mA | 85 °C | -40 °C | 3.6 V | 3 V | ESP32-S3R2 | ||||||||||||||||||||
Espressif Systems ESP32-S3-BOX-LITE | Board(s) | Audio | ESP32-S3 | Board(s) | Voice Recognition | |||||||||||||||||||||||||||||||||||
Espressif Systems ESP32-S3-KORVO-2-LCD | ESP32-S3 | Accessories, Board(s), Cable(s) | 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver | 2.4 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 2.38 | |
Description
General part information
ESP32-S3 Series
IC RF TxRx + MCU Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 2.412GHz ~ 2.484GHz 56-VFQFN Exposed Pad
