20IMX7-24-24-8G

Active

Bel Power Solutions

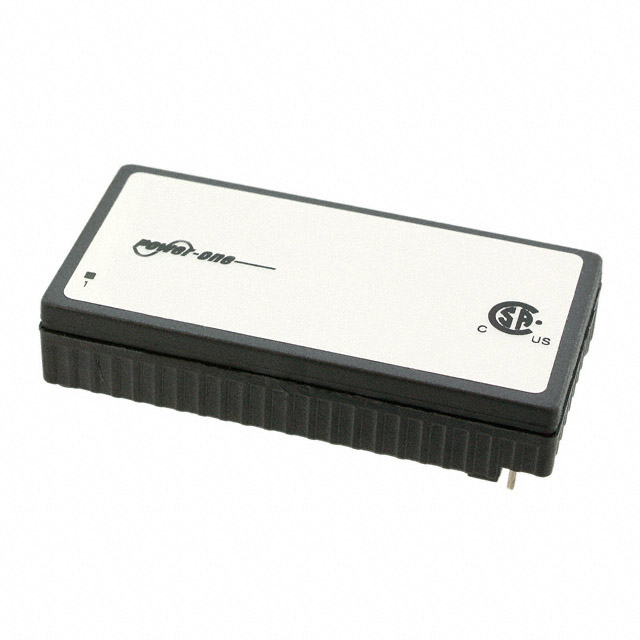

DC DC CONVERTER 24V 24V 7W

Deep-Dive with AI

Search across all available documentation for this part.

20IMX7-24-24-8G

Active

Bel Power Solutions

DC DC CONVERTER 24V 24V 7W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 81.25

Description

General part information

20IMX7 Series

Isolated Module, Conformal Coated DC DC Converter 2 Output 24V 24V 130mA, 130mA 8.4V - 36V Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20IMX7-24-24-8G	20IMX7 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Current - Output (Max)	130 mA	130 - 250 mA
Current - Output (Max)	130 mA	130 - 250 mA
Current - Output (Max)	-	1.2 - 600 mA
Efficiency	83 %	78 - 83 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module	14-DIP Module, 14-DIP Module, 9 Leads, 14-DIP Module, 8 Leads, 14-SMD Module, 8 Leads
Power (Watts)	7 W	7 W
Size / Dimension [x]	2 in	2 in
Size / Dimension [x]	50.8 mm	50.8 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [z]	10.4 mm	10.4 - 10.5 mm
Size / Dimension [z]	0.41 "	0.41 - 0.42 "
Type	Isolated Module, Conformal Coated	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	8.4 V	8.4 V
Voltage - Isolation	1.2 kV	1.2 - 1.5 kV
Voltage - Output 1	24 V	5 - 24 V
Voltage - Output 2	24 V	5 - 24 V

20IMX7 Series

DC DC CONVERTER 24V 24V 7W

Part	Features	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Voltage - Isolation	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)	Number of Outputs	Voltage - Output 2	Power (Watts)	Package / Case	Current - Output (Max) [Max]
Bel Power Solutions 20IMX7-24-24-8G	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	83 %	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	36 V	Conformal Coated, Isolated Module	24 V	85 °C	-40 °C	Through Hole	ITE (Commercial), Railway	1.2 kV	8.4 V	130 mA	130 mA	2	24 V	7 W	14-DIP Module
Bel Power Solutions 20IMX7-05-05-8G	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	81 %	10.5 mm	2 in	50.8 mm	0.42 in	25.4 mm	25.4 mm	36 V	Conformal Coated, Isolated Module	5 V	85 °C	-40 °C	Through Hole	ITE (Commercial), Railway	1.5 kV	8.4 V			2	5 V	7 W	14-DIP Module, 9 Leads	600 mA
Bel Power Solutions 20IMX7-15-15-8	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	83 %	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	36 V	Conformal Coated, Isolated Module	15 V	85 °C	-40 °C	Through Hole	ITE (Commercial), Railway	1.5 kV	8.4 V			2	15 V	7 W	14-DIP Module, 8 Leads
Bel Power Solutions 20IMX7-05-05-8	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	81 %	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	36 V	Conformal Coated, Isolated Module	5 V	85 °C	-40 °C	Through Hole	ITE (Commercial), Railway	1.5 kV	8.4 V			2	5 V	7 W	14-DIP Module	600 mA
Bel Power Solutions 20IMX7-15-15-8G	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	83 %	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	36 V	Conformal Coated, Isolated Module	15 V	85 °C	-40 °C	Through Hole	ITE (Commercial), Railway	1.5 kV	8.4 V			2	15 V	7 W	14-DIP Module, 8 Leads
Bel Power Solutions 20IMX7-05-8	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	78 %	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	36 V	Conformal Coated, Isolated Module	5.1 V	85 °C	-40 °C	Through Hole	ITE (Commercial), Railway	1.5 kV	8.4 V			1		7 W	14-DIP Module	1.2 A
Bel Power Solutions 20IMX7-15-15-8M	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	83 %	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	36 V	Conformal Coated, Isolated Module	15 V	85 °C	-40 °C	Surface Mount	ITE (Commercial), Railway	1.5 kV	8.4 V			2	15 V	7 W	14-SMD Module, 8 Leads
Bel Power Solutions 20IMX7-12-12-8	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	83 %	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	36 V	Conformal Coated, Isolated Module	12 V	85 °C	-40 °C	Through Hole	ITE (Commercial), Railway	1.5 kV	8.4 V	250 mA	250 mA	2	12 V	7 W	14-DIP Module
