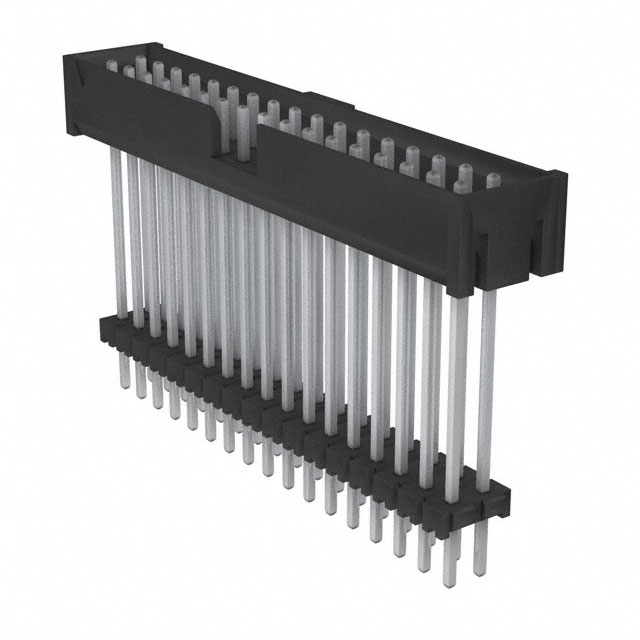

ZLTMM-117-71-TM-D-700
ActiveSamtec Inc.
CONN HEADER VERT 34POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
ZLTMM-117-71-TM-D-700
ActiveSamtec Inc.
CONN HEADER VERT 34POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZLTMM-117-71-TM-D-700 |
|---|---|
| Connector Type | Elevated, Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 3.05 mm |
| Contact Length - Mating | 0.12 in |
| Contact Length - Post [x] | 0.135 in |
| Contact Length - Post [x] | 3.43 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 17.78 mm |
| Insulation Height | 0.7 in |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.83 in |
| Overall Contact Length | 21.08 mm |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
ZLTMM-117 Series
| Part | Contact Finish - Post | Connector Type | Fastening Type | Number of Rows | Overall Contact Length | Overall Contact Length | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Termination | Number of Positions | Pitch - Mating [x] | Pitch - Mating [x] | Contact Material | Features | Shrouding | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Insulation Material | Mounting Type | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Contact Type | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Tin | Elevated Header | Push-Pull | 2 | 0.83 in | 21.08 mm | Black | 105 ░C | -55 °C | Square | Solder | 34 | 0.079 in | 2 mm | Phosphor Bronze | Keying Slot | Shrouded - 4 Wall | All | 3.05 mm | 0.12 in | Nylon Polyamide (PA) | Through Hole | 0.135 in | 3.43 mm | 0.079 in | 2 mm | 17.78 mm | 0.7 in | Male Pin | |||||||
Samtec Inc. | Tin | Elevated Header | Push-Pull | 2 | 0.535 in | 13.59 mm | Black | 105 ░C | -55 °C | Square | Solder | 34 | 0.079 in | 2 mm | Phosphor Bronze | Keying Slot | Shrouded - 4 Wall | All | 2.54 mm | 0.1 in | Nylon Polyamide (PA) | Through Hole | 0.079 in | 2 mm | 11.18 mm | 0.44 in | Male Pin | |||||||||
Samtec Inc. | Gold | Elevated Header | Push-Pull | 2 | 0.476 in | 12.09 mm | Black | 125 °C | -55 °C | Square | Solder | 34 | 0.079 in | 2 mm | Phosphor Bronze | Keying Slot | Shrouded - 4 Wall | All | 3.05 mm | 0.12 in | Nylon Polyamide (PA) | Through Hole | 0.079 in | 2 mm | 9.78 mm | 0.385 in | Male Pin | Gold | 0.096 in | 2.43 mm | 0.51 µm | 20 µin | 3 µin | 0.076 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.55 | |
Description
General part information
ZLTMM-117 Series
Connector Header Through Hole 34 position 0.079" (2.00mm)
