RS120-200

Active

OptiFuse

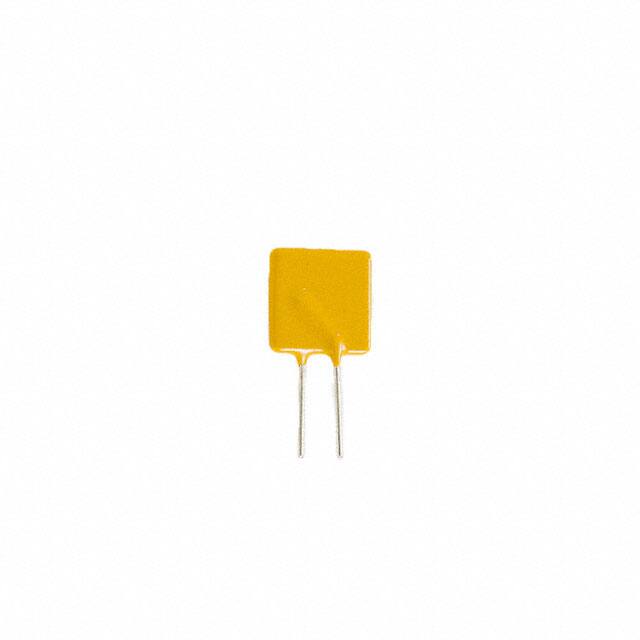

PTC RESET FUSE 120V 2A RADIAL

Search across all available documentation for this part.

Active

OptiFuse

PTC RESET FUSE 120V 2A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	RS120-200

Approval Agency	cUL, TUV, UL
Current - Hold (Ih) (Max) [Max]	2 A
Current - Max [Max]	20 A
Current - Trip (It)	4.2 A
Height - Seated (Max) [Max]	27.9 mm
Height - Seated (Max) [Max] [z]	1.098 "
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	80 mOhms
Resistance - Post Trip (R1) (Max) [Max]	210 mOhms
Size / Dimension [x]	0.925 "
Size / Dimension [x]	23.5 mm
Size / Dimension [y]	0.161 in
Size / Dimension [y]	4.1 mm
Type	Polymeric
Voltage - Max [Max]	135 V
Voltage - Max [Max]	120 V

Part	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]	Voltage - Max [Max]	Approval Agency	Resistance - Post Trip (R1) (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]	Mounting Type	Current - Max [Max]	Lead Spacing	Lead Spacing	Size / Dimension	Size / Dimension [custom]	Size / Dimension [diameter]	Time to Trip	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Height - Seated (Max) [Max] [z]
OptiFuse RS120-200	2 A	135 V	120 V	cUL TUV UL	210 mOhms	Disc Radial	0.925 "	0.161 in	23.5 mm	4.1 mm	85 °C	-40 °C	Polymeric	1.098 "	27.9 mm	4.2 A	80 mOhms	Through Hole	20 A	5.1 mm	0.201 in
OptiFuse RS120-050	500 mA	135 V	120 V	cUL TUV UL	1.17 Ohms	Disc Radial					85 °C	-40 °C	Polymeric		14.9 mm	1 A		Through Hole	3 A	5.1 mm	0.201 in	3.8 mm 9.2 mm	0.15 in	0.362 in	6 s	0.587 "
OptiFuse RS120-185	1.85 A	135 V	120 V	cUL TUV UL		Disc Radial					85 °C	-40 °C	Polymeric	0.98 in		3.7 A	80 mOhms	Through Hole	12 A	5.1 mm	0.201 in						19.9 mm	0.783 "	4.1 mm	0.161 "	24.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.04

General part information

Polymeric PTC Resettable Fuse 120V (135V Int) 2 A Ih Through Hole Radial, Disc
