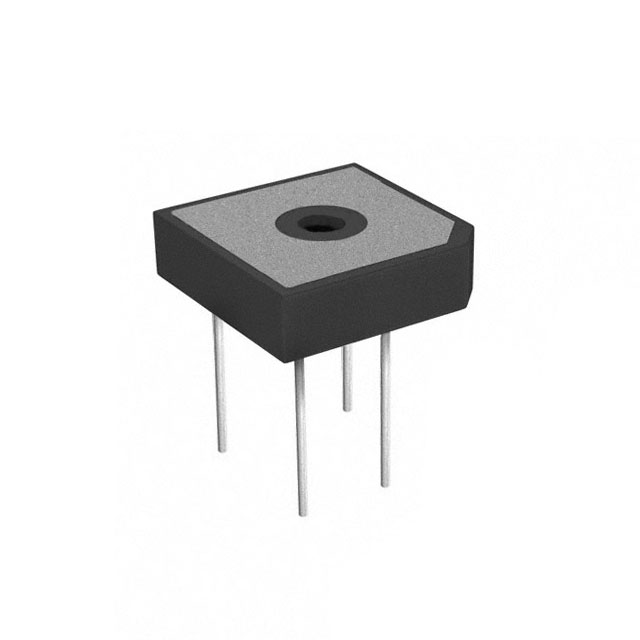

CBR10-J040

Obsolete

Central Semiconductor Corp

BRIDGE RECTIFIER DIODE, 1 PHASE, 10A, 400V V(RRM), SILICON, CASE CM

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

BRIDGE RECTIFIER DIODE, 1 PHASE, 10A, 400V V(RRM), SILICON, CASE CM

Technical Specifications

Parameters and characteristics for this part

Specification	CBR10-J040

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	CM, 4-Square
Supplier Device Package	CM
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V
Voltage - Peak Reverse (Max) [Max]	400 V

Part	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Package / Case	Mounting Type	Diode Type	Technology
Central Semiconductor Corp CBR10-J040	CM	10 µA	150 °C	-65 °C	1.2 V	5 A	400 V	4-Square CM	Through Hole	Single Phase	Standard
Central Semiconductor Corp CBR10-J020	CM	10 µA	150 °C	-65 °C	1.2 V	5 A	200 V	4-Square CM	Through Hole	Single Phase	Standard
Central Semiconductor Corp CBR10-J010	CM	10 µA	150 °C	-65 °C	1.2 V	5 A	100 V	4-Square CM	Through Hole	Single Phase	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole CM
