842-005 Series

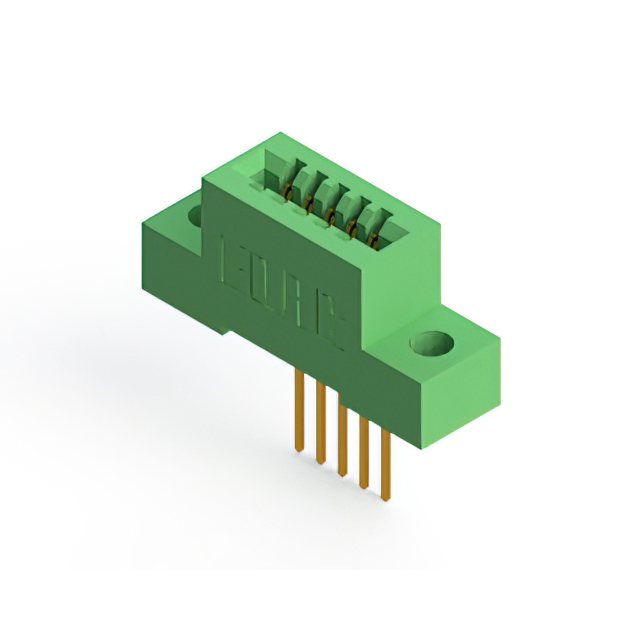

5 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	842-005-540-104

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	5
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

842-005 Series

Part	Contact Material	Gender	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Color	Card Thickness (Min)	Card Thickness (Max)	Number of Positions	Card Type	Flange Feature	Contact Finish Thickness	Pitch	Mounting Type	Read Out	Contact Type	Termination	Contact Finish	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 842-005-540-107	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge	Flush Mount M3 Threaded Insert Top Opening	10 Ąin	0.1 in	Through Hole	Single	Cantilever	Wire Wrap	Gold	DAP Diallyl Phthalate	1 rows
EDAC Inc. 842-005-541-112	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge	Flush Mount Side Opening Unthreaded	10 Ąin	0.1 in	Through Hole	Single	Cantilever	Wire Wrap	Gold	DAP Diallyl Phthalate	1 rows	0.128 in
EDAC Inc. 842-005-521-107	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge	Flush Mount M3 Threaded Insert Top Opening	10 Ąin	0.1 in	Through Hole	Single	Cantilever	Solder	Gold	DAP Diallyl Phthalate	1 rows
EDAC Inc. 842-005-544-101	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge		10 Ąin	0.1 in	Through Hole	Single	Cantilever	Wire Wrap	Gold	DAP Diallyl Phthalate	1 rows
EDAC Inc. 842-005-541-102	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge	Flush Mount Top Opening Unthreaded	10 Ąin	0.1 in	Through Hole	Single	Cantilever	Wire Wrap	Gold	DAP Diallyl Phthalate	1 rows	0.128 in
EDAC Inc. 842-005-520-101	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge		10 Ąin	0.1 in	Through Hole	Single	Cantilever	Solder	Gold	DAP Diallyl Phthalate	1 rows
EDAC Inc. 842-005-524-103	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge	Floating Bobbin Flush Mount	10 Ąin	0.1 in	Through Hole	Single	Cantilever	Solder	Gold	DAP Diallyl Phthalate	1 rows	0.116 in
EDAC Inc. 842-005-523-104	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge	Flush Mount Top Opening Unthreaded	10 Ąin	0.1 in	Through Hole	Single	Cantilever	Solder	Gold	DAP Diallyl Phthalate	1 rows	0.156 in
EDAC Inc. 842-005-542-112	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge	Flush Mount Side Opening Unthreaded	10 Ąin	0.1 in	Through Hole	Single	Cantilever	Wire Wrap	Gold	DAP Diallyl Phthalate	1 rows	0.128 in
EDAC Inc. 842-005-540-104	Copper Alloy	Female	1	125 °C	-40 °C	Green	0.054 in	0.07 in	5	Non Specified Single Edge	Flush Mount Top Opening Unthreaded	10 Ąin	0.1 in	Through Hole	Single	Cantilever	Wire Wrap	Gold	DAP Diallyl Phthalate	1 rows	0.156 in
