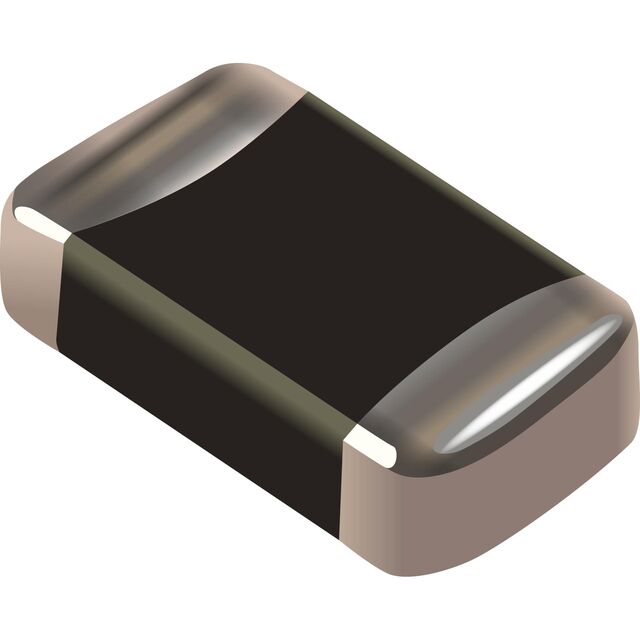

BVR0805-04PFR
ActiveBourns Inc.
VARISTOR MLV 0805 4VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BVR0805-04PFR
ActiveBourns Inc.
VARISTOR MLV 0805 4VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BVR0805-04PFR |
|---|---|
| Capacitance @ Frequency | 600 pF |
| Current - Surge | 80 A |
| Maximum AC Volts [Max] | 4 V |
| Maximum DC Volts [Max] | 5.5 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0805 |
| Varistor Voltage (Max) [Max] | 12 V |
| Varistor Voltage (Min) [Min] | 7.8 V |
| Varistor Voltage (Typ) | 9.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.32 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.32 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 4000 | $ 0.14 | ||
| 8000 | $ 0.13 | |||
| 12000 | $ 0.12 | |||
| 28000 | $ 0.12 | |||
Description
General part information
BVR0805 Series
9.9 V 80 A Varistor 1 Circuit Surface Mount, MLCV 0805 (2012 Metric)
