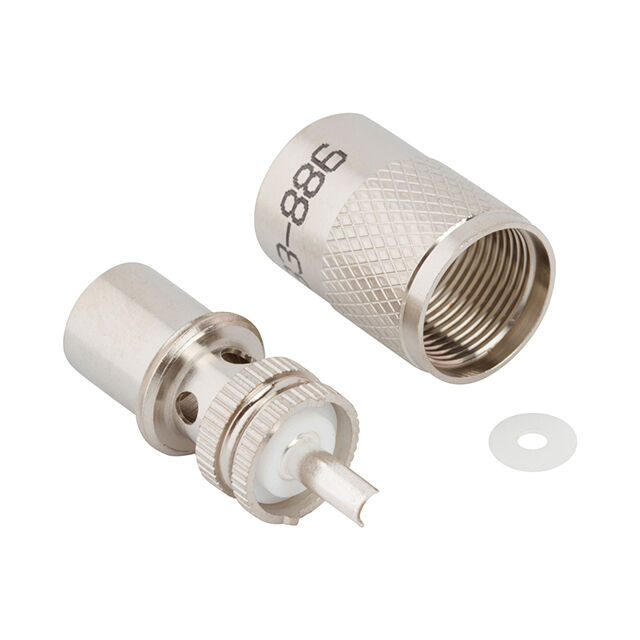

083-886

Active

Amphenol RF

CONN UHF PLUG STR SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN UHF PLUG STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	083-886

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	UHF
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	300 MHz
Housing Color	Silver
Impedance	Non-Constant
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Mounting Type	Mating Cycles	Shield Termination	Number of Ports	Cable Group	Housing Color	Connector Type	Body Finish	Contact Termination	Frequency - Max [Max]	Dielectric Material	Connector Style	Center Contact Plating	Voltage Rating	Center Contact Material	Body Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 083-886	Free Hanging (In-Line)	500	Solder	1	213 214 225 302 393 87 8A 9 9A 9B RG-8	Silver	Male Pin Plug	Nickel	Solder	300 MHz	Polytetrafluoroethylene (PTFE)	UHF	Silver	500 V	Brass	Brass	Non-Constant
Amphenol RF 083-886-2050	Free Hanging (In-Line)	500	Solder	1	213 214 225 302 393 87 8A 9 9A 9B RG-8	Silver	Male Pin Plug	Silver	Solder	300 MHz	Polytetrafluoroethylene (PTFE)	UHF	Silver	500 V	Brass	Brass	Non-Constant	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.52

General part information

UHF Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
