SMP-MSSB Series

Part	Body Finish	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Mating Cycles	Mounting Type	Fastening Type	Connector Style	Center Contact Material	Features	Housing Color	Impedance	Connector Type	Shield Termination	Frequency - Max	Number of Ports	Contact Termination	Dielectric Material	Mounting Feature

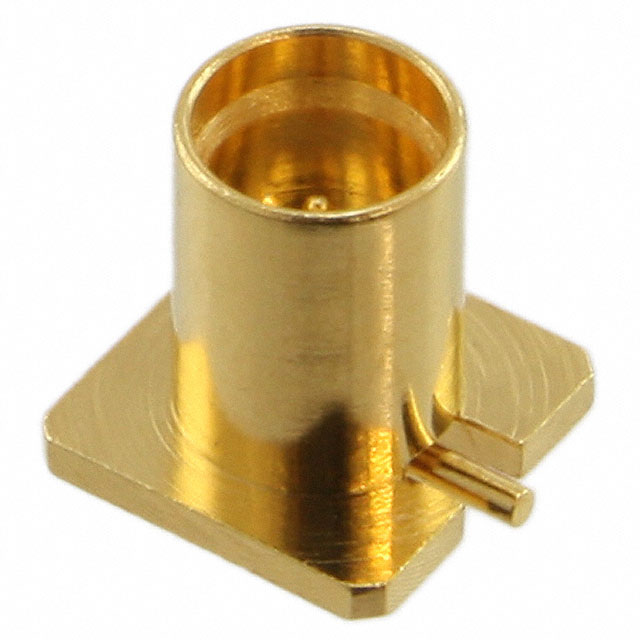

McGill Microwave Systems SMP-MSSB-PCR	Gold	Brass	-65 °C	165 °C	Gold	1000 cycles	Surface Mount	Snap-On	SMP	Beryllium Copper	Smooth Bore	Gold	50 Ohm	Jack Male Pin	Solder	12 Gbps	1	Solder
McGill Microwave Systems SMP-MSSB-PCT	Gold	Brass	-65 °C	165 °C	Gold	500 cycles	Through Hole	Snap-On	SMP	Brass	Smooth Bore	Gold	50 Ohm	Male Pin Receptacle	Solder	6000 MHz	1	Solder
McGill Microwave Systems SMP-MSSB-PCT-5	Gold	Brass	-65 °C	165 °C	Gold	1000 cycles	Surface Mount Through Hole	Snap-On	SMP	Brass	Smooth Bore	Gold	50 Ohm	Male Pin Receptacle	Solder	18 GHz	1	Solder	Liquid Crystal Polymer (LCP)
McGill Microwave Systems SMP-MSSB-PCS-17	Gold	Brass	-40 °C	85 °C	Gold	1000 cycles	Surface Mount	Snap-On	SMP	Brass	Smooth Bore	Gold	50 Ohm	Jack Male Pin	Solder	20 Gbps	1	Solder	Liquid Crystal Polymer (LCP)
McGill Microwave Systems SMP-MSSB-CSB	Gold	Brass	-55 °C	165 °C	Gold	100 cycles	Free Hanging (In-Line)	Threaded	HD SMP	Brass	Smooth Bore	Gold	50 Ohm	Jack Male Pin	Push On	26.5 GHz	1	Solder	Polytetrafluoroethylene (PTFE)	Bulkhead
McGill Microwave Systems SMP-MSSB-PCT-4	Gold	Phosphor Bronze	-65 °C	165 °C	Gold	500 cycles	Through Hole	Snap-On	SMP	Beryllium Copper	Smooth Bore	Gold	50 Ohm	Jack Male Pin	Solder	26.5 GHz	1	Solder	Polyetheretherketone (PEEK)
