50013/7035/15

Active

Jacob GmbH

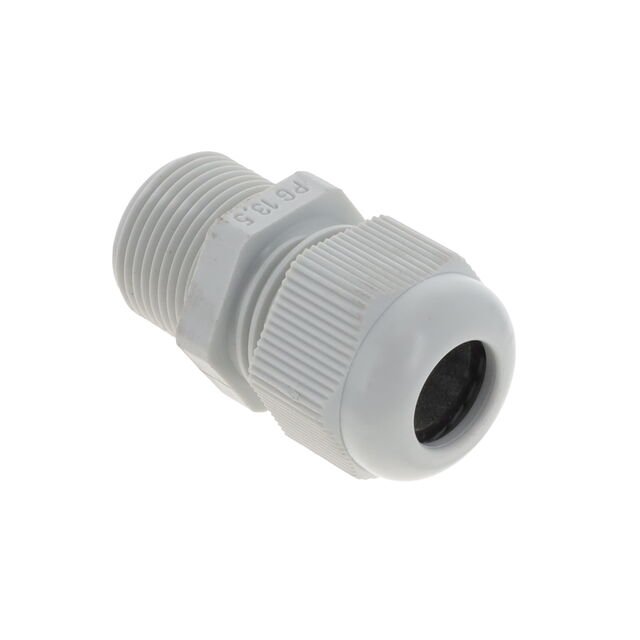

CABLE GLAND 6-12MM PG13.5

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 6-12MM PG13.5

Technical Specifications

Parameters and characteristics for this part

Specification	50013/7035/15

Color	Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	PG13.5
Type	Cable Gland

Part	Includes	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Jacob GmbH 50013/7035/15	Sealing Ring	IP68 - Dust Tight Waterproof	0.591 in	15 mm	6 mm	0.236 in	Gray	PG13.5	100 °C	-40 °C	Cable Gland	0.472 in	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG13.5 Gray
