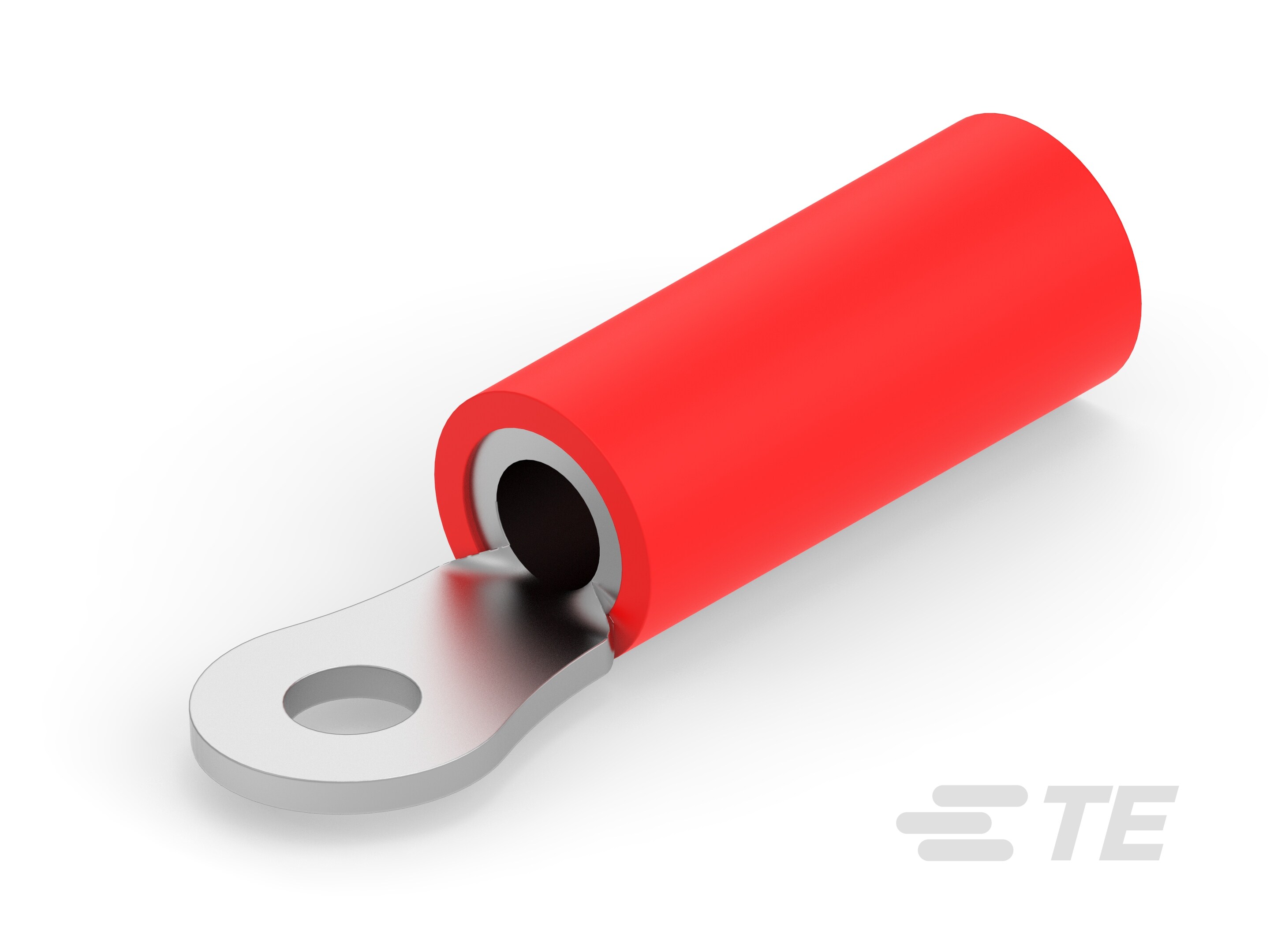

Specification	696049-2

Color	Red
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Length - Overall	1.39 in
Material - Insulation	PVC, Poly-Vinyl Chloride
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.048 in
Width - Outer Edges	0.406 in
Wire Gauge	8 AWG

PLASTI-GRIP Series

Part	Terminal Type	Contact Material	Stud/Tab Size	Wire Gauge	Features	Contact Finish	Thickness	Mounting Type	Length - Overall	Width - Outer Edges	Color	Termination	Insulation	Material - Insulation	Insulation Diameter	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Length - Termination	Length - Ring Center to Termination	Tongue Inside Opening	Insulation Diameter (Max)	Insulation Diameter (Min)	Stud/Tab Size	Number of Wire Entries
TE Connectivity AMP Connectors 52263-1	Circular	Copper	10 Stud	8 AWG	Serrated Termination	Tin	0.04 in	Free Hanging (In-Line)	1.576 in	0.431 in	Red	Crimp	Insulated	Poly-Vinyl Chloride PVC	0.33 in
TE Connectivity AMP Connectors 32951	Circular	Copper	8 Stud		Serrated Termination	Tin	0.031 in	Free Hanging (In-Line)	0.856 in	0.312 in	Red	Crimp	Insulated			16 AWG	22 AWG
TE Connectivity AMP Connectors 52263-5	Circular	Copper	10 Stud	8 AWG	Serrated Termination	Tin	0.04 in	Free Hanging (In-Line)	1.556 in	0.431 in	Red	Crimp	Insulated
TE Connectivity AMP Connectors 9-1377173-5	Standard	Copper	8 Stud			Tin		Free Hanging (In-Line)	0.813 in	0.25 in	Blue	Crimp	Insulated	Nylon PA Polyamide		14 AWG	16 AWG	0.404 in	0.28 in	0.171 in	0.17 in	0.115 in
TE Connectivity AMP Connectors 52291-1	Circular	Copper	0.375 in	8 AWG	Serrated Termination	Tin	0.04 in	Free Hanging (In-Line)	1.696 in	0.587 in	Red	Crimp	Insulated	Poly-Vinyl Chloride PVC	0.36 in								3 Stud 8 Stud
TE Connectivity AMP Connectors 34132	Individual Openings (Parallel) Inline				Serrated Mating Area						Red	Crimp	Fully Insulated			16 AWG	22 AWG							2
TE Connectivity AMP Connectors 55621-1	Circular	Copper	0.25 Stud	8 AWG	Serrated Termination	Tin	0.04 in	Free Hanging (In-Line)	1.561 in	0.431 in	Red	Crimp	Insulated	Poly-Vinyl Chloride PVC	0.36 in
TE Connectivity AMP Connectors 52950	Snap Spring	Brass	8 Stud		Serrated Termination	Tin		Free Hanging (In-Line)	0.872 in	0.375 in	Red	Crimp	Insulated	Poly-Vinyl Chloride PVC		16 AWG	22 AWG	0.416 in	0.281 in	0.164 in	0.14 in	0.105 in
TE Connectivity AMP Connectors 52043-1	Circular	Copper	0.25 Stud	4 AWG	Serrated Termination	Tin	0.048 in	Free Hanging (In-Line)	1.948 in	0.546 in	Yellow	Crimp	Insulated	Poly-Vinyl Chloride PVC	0.515 in
TE Connectivity AMP Connectors 2-34157-1	Circular	Copper	4 Stud		Serrated Termination	Tin	0.031 in	Free Hanging (In-Line)	0.715 in	0.25 in	Blue	Crimp	Insulated			14 AWG	16 AWG
