1-967622-2
ActiveTE Connectivity AMP Connectors

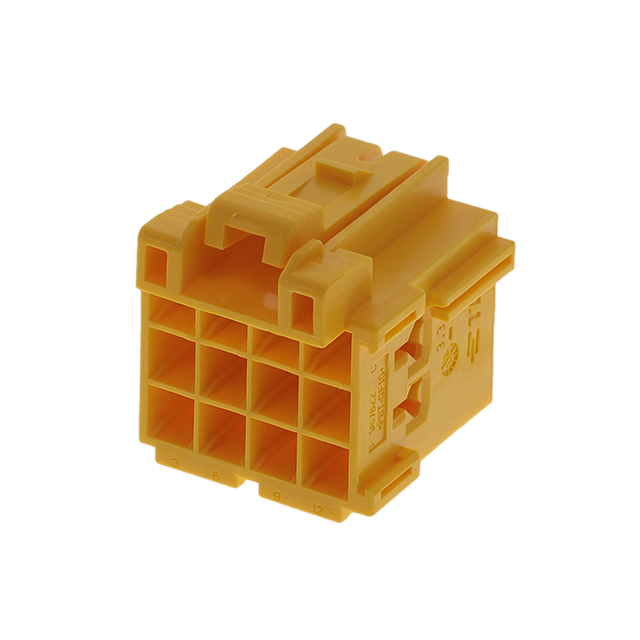

CONN RCPT HSG 12POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967622-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 12POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-967622-2 | 967622 Series |
|---|---|---|
| Color | Yellow | Yellow, Purple, Blue |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | - | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 12 | 12 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 5.51 mm | 5.5 - 5.51 mm |
| Row Spacing | - | 0.217 in |
| Row Spacing [x] | 0.217 in | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.15 | |
| 10 | $ 1.08 | |||
| 25 | $ 1.04 | |||
| 50 | $ 1.03 | |||
| 100 | $ 0.93 | |||
| 250 | $ 0.90 | |||
| 800 | $ 0.82 | |||
| 1600 | $ 0.73 | |||
| 3200 | $ 0.68 | |||
967622 Series
CONN RCPT HSG 12POS 5.00MM
| Part | Connector Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Color | Row Spacing [x] | Row Spacing | Number of Rows | Note | Pitch [x] | Pitch [x] | Mounting Type | Insulation Material | Contact Termination | Fastening Type | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967622-2 | Receptacle | Female Socket | 100 °C | -30 ░C | 12 | Yellow | 0.217 in | 5.51 mm | 3 | Contacts Not Included | 5 mm | 0.197 in | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | ||
TE Connectivity AMP Connectors 1-967622-6 | Receptacle | Female Socket | 100 °C | -30 ░C | 12 | Purple | 5.5 mm | 3 | 5 mm | 0.197 in | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | Latch Holder | 0.217 in | ||
TE Connectivity AMP Connectors 1-967622-3 | Receptacle | Female Socket | 100 °C | -30 ░C | 12 | Blue | 0.217 in | 5.51 mm | 3 | Contacts Not Included | 5 mm | 0.197 in | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | Crimp |
Description
General part information
967622 Series
12 Rectangular Connectors - Housings Receptacle Yellow 0.197" (5.00mm)
