DCCHD15M

Active

Switchcraft Inc.

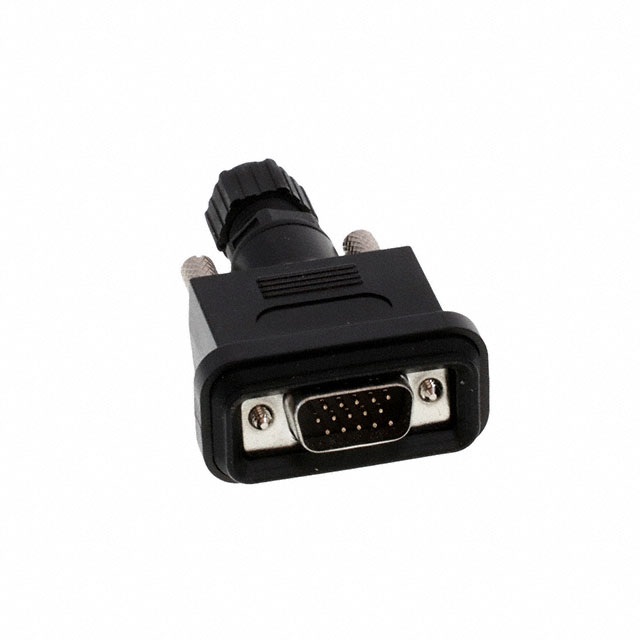

CONN D-SUB HD PLUG 15P SLDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN D-SUB HD PLUG 15P SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub, High Density Plug, Male Pins Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	DCCHD15M	DCCHD1 Series

Color	Black	Black
Connector Style	High Density, D-Sub	High Density, D-Sub
Connector Type	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	2 A	2 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Cable Side, Male Jackscrew	Cable Side, Male Jackscrew
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	15	15
Number of Rows	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Shell Size, Connector Layout [custom]	High Density	High Density
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	22 AWG	22 AWG

CONN D-SUB HD RCPT 15P SLDR CUP

Part	Dielectric Material	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Ingress Protection	Flange Feature	Contact Material	Contact Finish	Number of Positions	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Number of Rows	Color	Connector Type	Material Flammability Rating
Switchcraft Inc. DCCHD15F	Thermoplastic	Signal	DE, E	1	High Density	2 A	85 °C	-55 °C	D-Sub, High Density	IP67 - Dust Tight, Waterproof	Cable Side, Male Jackscrew	Copper Alloy	Gold	15	22 AWG	26 AWG	Free Hanging (In-Line)	3	Black	Receptacle, Female Sockets	UL94 V-0
Switchcraft Inc. DCCHD15M	Thermoplastic	Signal	DE, E	1	High Density	2 A	85 °C	-55 °C	D-Sub, High Density	IP67 - Dust Tight, Waterproof	Cable Side, Male Jackscrew	Copper Alloy	Gold	15	22 AWG	26 AWG	Free Hanging (In-Line)	3	Black	Male Pins, Plug	UL94 V-0
