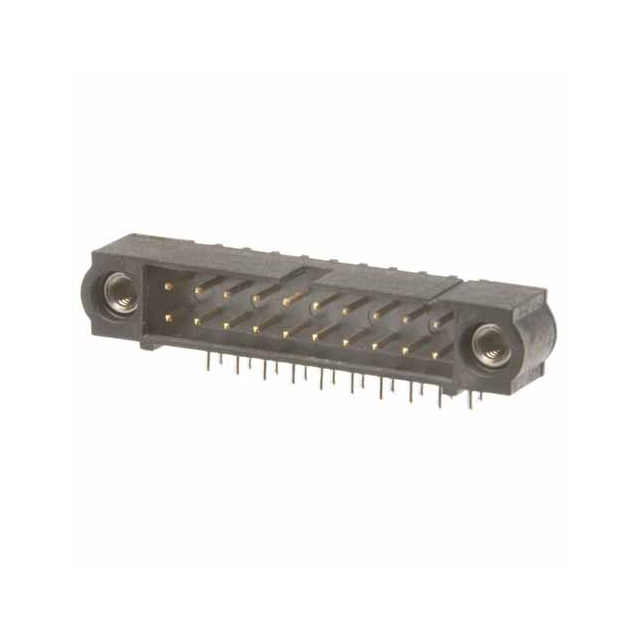

M80-5301222

Obsolete

Harwin Inc.

CONN HEADER R/A 12POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-530yyy Drawing Datasheet

M80-5301222

Obsolete

Harwin Inc.

CONN HEADER R/A 12POS 2MM

Deep-Dive with AI

DocumentsM80-530yyy Drawing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5301222

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Keying Slot, Mating Flange
Insulation Color	Black
Insulation Height	0.218 in
Insulation Height	5.55 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-530 Series

Part	Contact Shape	Contact Finish - Post	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Features	Contact Material	Insulation Height	Insulation Height	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Style	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Number of Positions Loaded	Connector Type	Insulation Color	Current Rating (Amps)	Number of Positions
Harwin Inc. M80-5301022	Circular	Tin-Lead	800 V	3 µm	118.1 µin	Solder	Keying Slot Mating Flange	Phosphor Bronze	0.218 in	5.55 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2	29.5 Áin	0.75 Ám	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm	10	All	Header	Black	2.2 A
Harwin Inc. M80-5301842	Circular	Tin	800 V	3 µm	118.1 µin	Solder	Keying Slot Mating Flange	Phosphor Bronze	0.218 in	5.55 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2	29.5 Áin	0.75 Ám	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm	18	All	Header	Black	2.2 A
Harwin Inc. M80-5301642	Circular	Tin	800 VAC	0.3 µm	12 µin	Solder	Keying Slot Mating Flange	Phosphor Bronze	0.22 in	5.6 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2	29.5 Áin	0.75 Ám	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm		All	Header	Black	2.2 A	16
Harwin Inc. M80-5301605	Circular	Gold				Solder	Keying Slot Mating Flange	Phosphor Bronze	0.238 in	6.05 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2			Through Hole Right Angle	Board to Cable/Wire	0.079 in	2 mm		All	Header	Black		16
Harwin Inc. M80-5301222	Circular	Tin-Lead	800 V	3 µm	118.1 µin	Solder	Keying Slot Mating Flange	Phosphor Bronze	0.218 in	5.55 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2	29.5 Áin	0.75 Ám	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm	12	All	Header	Black	2.2 A
Harwin Inc. M80-5301805	Circular	Gold				Solder	Keying Slot Mating Flange	Phosphor Bronze	0.238 in	6.05 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2			Through Hole Right Angle	Board to Cable/Wire	0.079 in	2 mm	18	All	Header	Black
Harwin Inc. M80-5305022	Circular	Tin-Lead	800 V	3 µm	118.1 µin	Solder	Keying Slot Mating Flange	Phosphor Bronze	0.218 in	5.55 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2	29.5 Áin	0.75 Ám	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm	50	All	Header	Black	2.2 A
Harwin Inc. M80-5302022	Circular	Tin-Lead	800 V	3 µm	118.1 µin	Solder	Keying Slot Mating Flange	Phosphor Bronze	0.218 in	5.55 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2	29.5 Áin	0.75 Ám	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm	20	All	Header	Black	2.2 A
Harwin Inc. M80-5301422	Circular	Tin-Lead	800 V	3 µm	118.1 µin	Solder	Keying Slot Mating Flange	Phosphor Bronze	0.218 in	5.55 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2	29.5 Áin	0.75 Ám	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm	14	All	Header	Black	2.2 A
Harwin Inc. M80-5301042	Circular	Tin	800 V	3 µm	118.1 µin	Solder	Keying Slot Mating Flange	Phosphor Bronze	0.218 in	5.55 mm	Gold	-55 °C	125 °C	0.118 in	3 mm	UL94 V-0	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	0.079 in	2 mm	Shrouded - 4 Wall	2	29.5 Áin	0.75 Ám	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm	10	All	Header	Black	2.2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M80-530 Series

Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80-530yyy Drawing

Datasheet
