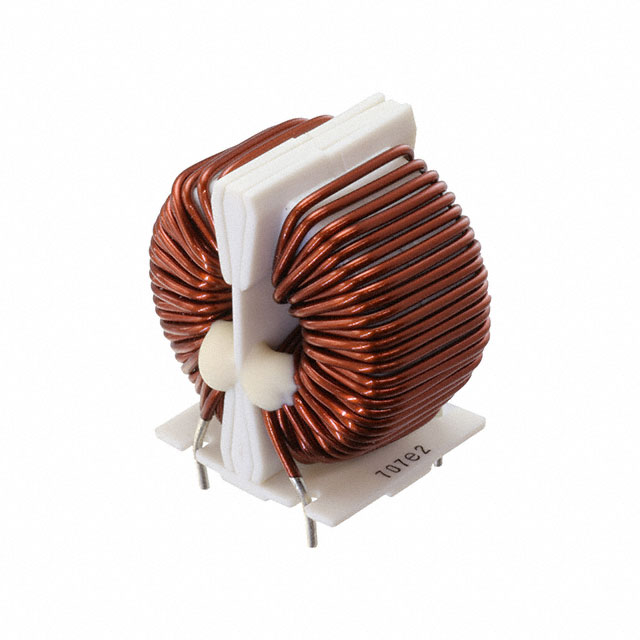

SCR25-070-1R1A070J
ActiveKEMET
CMC 7MH 7A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
SCR25-070-1R1A070J
ActiveKEMET
CMC 7MH 7A 2LN TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCR25-070-1R1A070J |
|---|---|
| Current Rating (Max) [Max] | 7 A |
| DC Resistance (DCR) (Max) [Max] | 34 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] [z] | 35 mm |
| Height (Max) [Max] [z] | 1.378 in |
| Inductance @ Frequency | 7 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.16 | |
| 10 | $ 5.56 | |||
| 30 | $ 5.30 | |||
| 60 | $ 5.13 | |||
| 120 | $ 4.97 | |||
| 270 | $ 4.79 | |||
| 510 | $ 4.65 | |||
| 1020 | $ 4.51 | |||
Description
General part information
SCR25-070 Series
7 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 7A DCR 34mOhm
Documents
Technical documentation and resources
