8A3012C-Z

Obsolete

Nidec Components Corporation

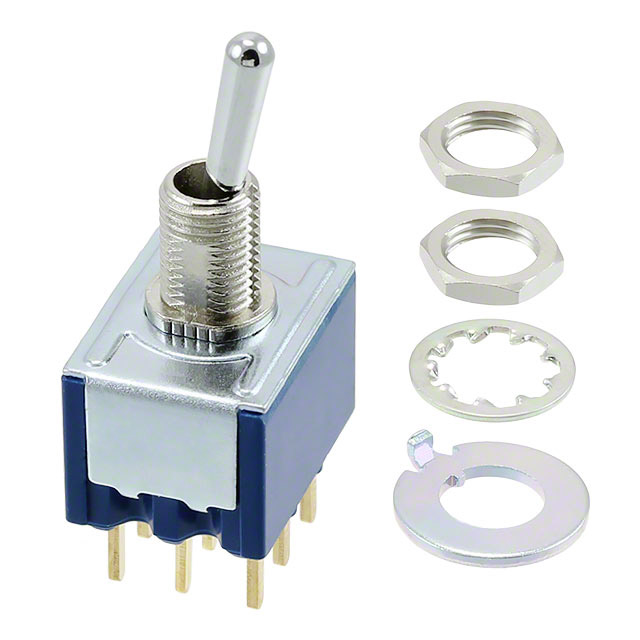

SWITCH TOGGLE 3PDT 25MA 20V

Search across all available documentation for this part.

Obsolete

Nidec Components Corporation

SWITCH TOGGLE 3PDT 25MA 20V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8A3012C-Z	8A3012 Series

Actuator Type	Standard Round	Standard Round
Bushing Thread	1/4-40	1/4-40
Circuit	3PDT	3PDT
Current Rating (Amps)	25 mA	4 - 25 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm	6.5 mm
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	-	125 V
Voltage Rating - DC	20 V	20 - 30 V

SWITCH TOGGLE 3PDT 6A 125V

Part	Termination Style	Illumination	Bushing Thread	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Panel Cutout Dimensions [diameter]	Features	Voltage Rating - AC	Circuit	Switch Function	Electrical Life	Current Rating (Amps)
Nidec Components Corporation 8A3012-Z	PC Pin	Non-Illuminated	1/4-40	30 V	-30 ░C	85 °C	Standard Round	6.5 mm	Sealed - Flux Protection	125 V	3PDT	On-On	50000 Cycles	4 A, 6 A
Nidec Components Corporation 8A3012C-Z	PC Pin	Non-Illuminated	1/4-40	20 V	-30 ░C	85 °C	Standard Round	6.5 mm	Sealed - Flux Protection		3PDT	On-On	50000 Cycles	25 mA
