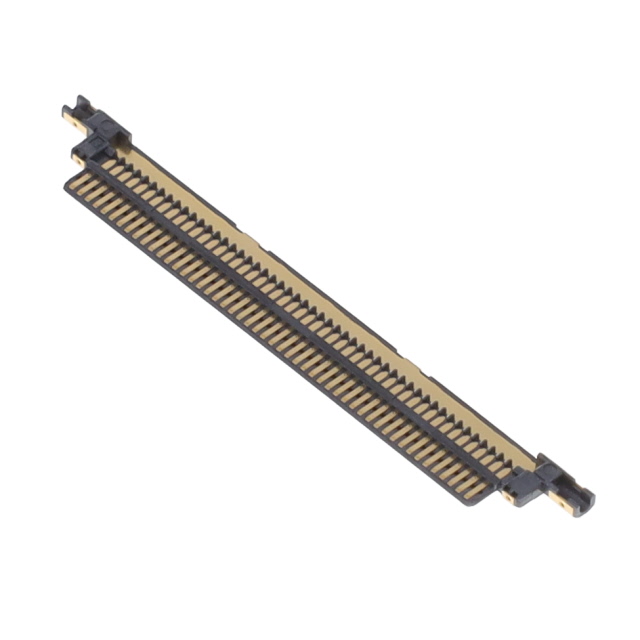

HJ1P050MA1R6000
ObsoleteJAE Electronics
CONN PLUG 50POS SOLDER GOLD
Deep-Dive with AI
Search across all available documentation for this part.
HJ1P050MA1R6000
ObsoleteJAE Electronics
CONN PLUG 50POS SOLDER GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HJ1P050MA1R6000 |
|---|---|
| Cable Termination | Solder |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Type | Center Strip Contact |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 50 |
| Number of Rows | 1 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
| Wire Gauge [Max] | 36 AWG, 46 AWG |
| Wire Gauge [Min] | 34 AWG, 36 AWG |
| Wire Type | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.96 | |
| 10 | $ 1.53 | |||
| 25 | $ 1.39 | |||
| 50 | $ 1.32 | |||
| Digi-Reel® | 1 | $ 1.88 | ||
| 10 | $ 1.70 | |||
| 25 | $ 1.61 | |||
| 50 | $ 1.58 | |||
| 100 | $ 1.50 | |||
| 250 | $ 1.32 | |||
| Tape & Reel (TR) | 6000 | $ 1.32 | ||
Description
General part information
HJ1P050 Series
50 Position Rectangular Plug Connector Solder Gold 34-36 AWG, 36-44 AWG
Documents
Technical documentation and resources
No documents available
