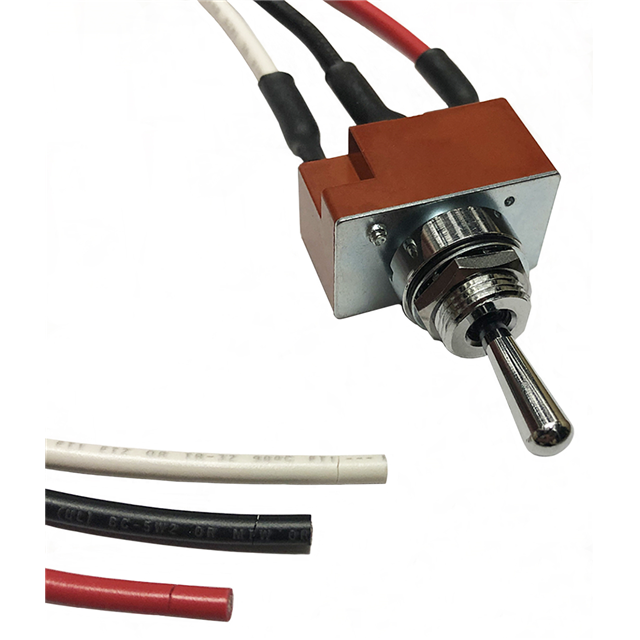

S3AW-WL

Active

NKK Switches

SWITCH TOGGLE SPDT 15A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	S3AW-WL

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	20 A, 15 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off-On
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Electrical Life	Voltage Rating - DC	Voltage Rating - AC	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Switch Function	Actuator Material	Illumination	Ingress Protection	Actuator Type	Bushing Thread	Bushing Thread	Circuit	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches S3AW-WL	25000 Steps	30 V	125 V	17.5 mm	12.5 mm	15 A 20 A	On-Off-On	Brass Chrome Plated	Non-Illuminated	IP67 - Dust Tight Waterproof	Standard Round	M12	1 x 1	SPDT	Wire Leads	70 °C	-30 ░C
NKK Switches S3AWF	25000 Steps	30 V	125 V	17.5 mm	12.5 mm	15 A 20 A	On-Off-On	Brass Chrome Plated	Non-Illuminated	IP67 - Dust Tight Waterproof	Standard Round	M12	1 x 1	SPDT	Quick Connect - 0.250" (6.3mm)	70 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
