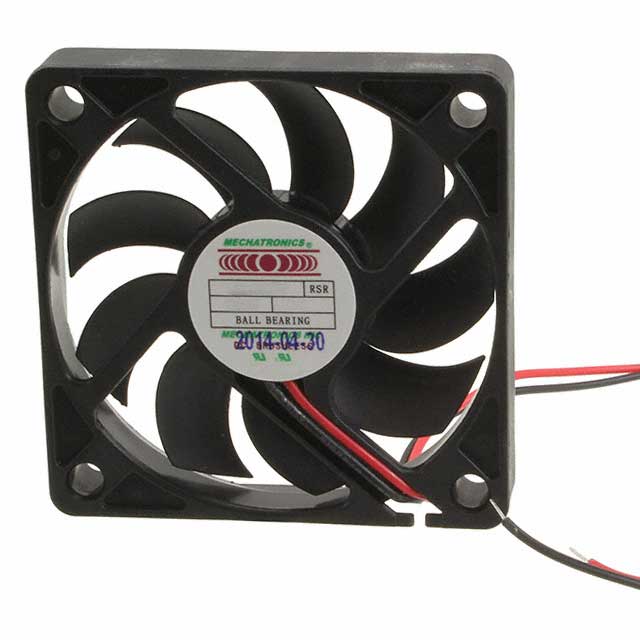

Specification	MB6010M12B-RSR

Air Flow	11 CFM
Approval Agency	cUL, UL
Bearing Type	Ball
Current Rating	0.08 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	PBT, Polybutylene Terephthalate
Material - Frame	Polybutylene Terephthalate (PBT)
Noise	22.5 dB
RPM	3200 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	0.06 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.8 VDC
Voltage Range (Min)	6 VDC
Weight	0.059 lb
Width	10.2 mm

MB6010 Series

Part	RPM	Air Flow	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Features	Static Pressure	Approval Agency	Noise	Width	Termination Leads Count	Termination Type	Termination	Fan Type	Weight	Voltage - Rated	Bearing Type	Current Rating	Voltage Range (Max)	Voltage Range (Min)	Material - Frame	Material - Blade
Mechatronics Fan Group MB6010M12B-RSR	3200 RPM	11 CFM	60 mm	Square	60 mm	Thermal Overload Protector (TOP)	0.06 in H2O	cUL UL	22.5 dB	10.2 mm	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	0.059 lb	12 VAC	Ball	0.08 A	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate
Mechatronics Fan Group MB6010L05B-RS		9.3 CFM	60 mm	Square	60 mm	Thermal Overload Protector (TOP)	0.04 in H2O	cUL UL		10 mm	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	0.059 lb	5 VAC	Ball				Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate
Mechatronics Fan Group MB6010H12B-RSR	3900 RPM	13.5 CFM	60 mm	Square	60 mm	Thermal Overload Protector (TOP)	0.08 in H2O	cUL UL	28 dB	10.2 mm	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	0.059 lb	12 VAC	Ball	120 mA	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate
Mechatronics Fan Group MB6010X12B1-RSR-NS-L18	5300 RPM	18.7 CFM	60 mm	Square	60 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.13 in H2O	cUL UL	35 dB	10.2 mm	3	Wire Leads	3 Wire Leads	Tubeaxial	0.059 lb	12 VAC	Ball	160 mA	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate
Mechatronics Fan Group MB6010X12B-RSR	5300 RPM	18.7 CFM	60 mm	Square	60 mm	Thermal Overload Protector (TOP)	0.13 in H2O	cUL UL	35 dB	10.2 mm	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	0.059 lb	12 VAC	Ball	160 mA	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate
