PJ-067B

Active

CUI Devices

CONN PWR JACK 2.5X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2.5X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-067B

Actual Diameter [diameter]	0.098 ", 0.224 in
Actual Diameter [diameter]	2.5 mm, 5.7 mm
Body Color	Black
Body Material	Brass
Connector Type	Jack
Contact Material	Brass, Phosphor Bronze
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Features	Thread Lock, Mounting Hardware
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Includes	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth [x]	0.331 in
Mating Length/Depth [x]	8.4 mm
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Thread Size	5/16"-32
Voltage - Rated	24 VDC

Part	Mounting Type	Voltage - Rated	Mounting Feature	Body Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Plating [custom]	Gender	Internal Switch(s)	Connector Type	Material Flammability Rating	Body Color	Current Rating (Amps)	Features	Mating Length/Depth [x]	Mating Length/Depth [x]	Includes	Thread Size	Termination	Housing Material	Contact Material	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Number of Positions/Contacts	Actual Diameter [diameter]	Actual Diameter [diameter]
CUI Devices PJ-067B	Panel Mount Right Angle Through Hole	24 VDC	Bulkhead - Front Side Nut	Brass	Unshielded	70 °C	-25 °C	Silver	Male	Normally Closed Single Switch	Jack	UL94 V-0	Black	5 A	Mounting Hardware Thread Lock	0.331 in	8.4 mm	Connector Nut Washer	5/16"-32	Solder Eyelet(s)	Polybutylene Terephthalate (PBT)	Brass Phosphor Bronze	2.5 mm 5.5 mm	0.098 " 0.217 "	2 Conductors 3 Conductors	0.098 " 0.224 in	2.5 mm 5.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

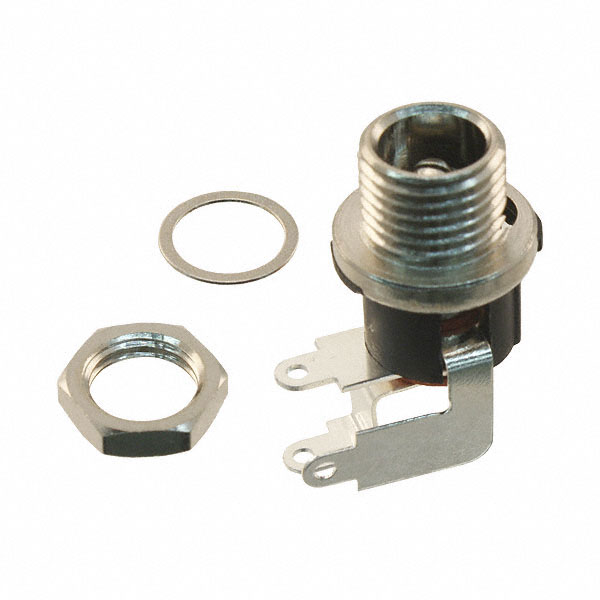

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount, Through Hole, Right Angle
