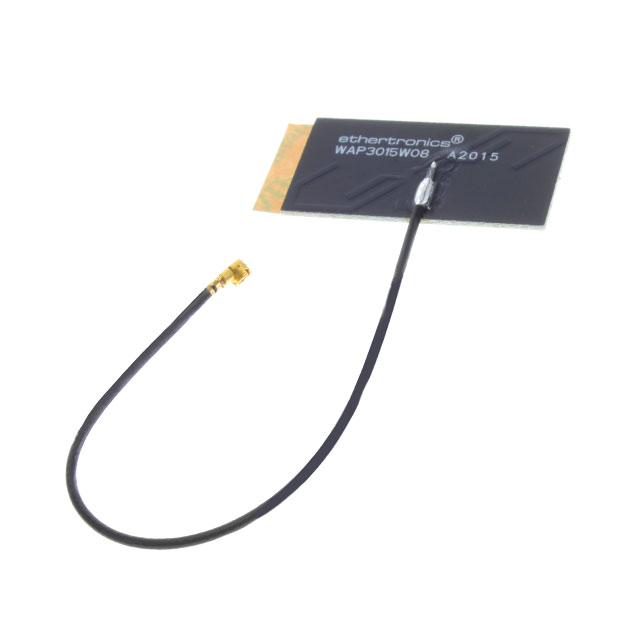

WAP3015W08-U100D3B0A
ActiveKyocera AVX
ANTENNA ASSY, WI-FI LEFT, 100 D0
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WAP3015W08-U100D3B0A
ActiveKyocera AVX
ANTENNA ASSY, WI-FI LEFT, 100 D0
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WAP3015W08-U100D3B0A |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 5.5 GHz, 2.44 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.48 GHz, 5.85 GHz |
| Frequency Range [Min] | 2.4 GHz, 5.15 GHz |
| Gain | 6.7 dBi, 3 dBi |
| Height (Max) | 0.8 mm |
| Height (Max) [Max] | 0.031 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | WiFi |
| Termination | U.FL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.88 | |
| 10 | $ 3.25 | |||
| 25 | $ 2.82 | |||
| 100 | $ 2.35 | |||
| 250 | $ 2.11 | |||
| 500 | $ 1.97 | |||
| 1000 | $ 1.86 | |||
| 3000 | $ 1.71 | |||
| 5000 | $ 1.65 | |||
Description
General part information
WAP3015 Series
RF ANTENNA Wi-Fi PCB Trace U.FL Adhesive
