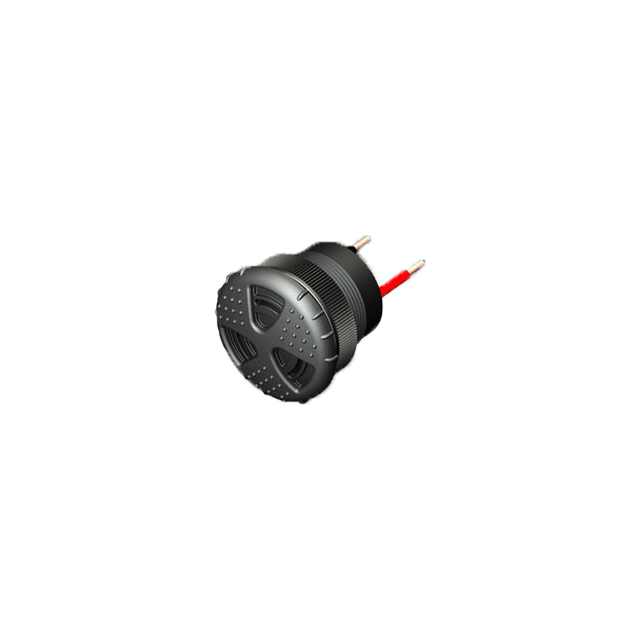

TMB-V86-531-W(F)

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMB-V86-531-W(F)

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMB-V86-531-W(F)

Approval Agency	UR, UL
Current - Supply [Max]	15 mA
Current - Supply [Min]	2 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.9 kHz
Height - Seated (Max)	31.75 mm
Height - Seated (Max) [Max]	1.25 in
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Mode	Pulse, Fast
Port Location	Top
Size / Dimension [diameter]	1.41 in
Size / Dimension [diameter]	35.81 mm
Sound Pressure Level (SPL)	95 dB
Technology	Piezo
Termination	Wire Leads
Voltage Range [Max]	24 V
Voltage Range [Min]	5 VDC

TMB-V86 Series

Part	Sound Pressure Level (SPL)	Operating Mode	Termination	Voltage Range [Min]	Voltage Range [Max]	Driver Circuitry	Approval Agency	Height - Seated (Max)	Height - Seated (Max) [Max]	Frequency	Port Location	Current - Supply [Min]	Current - Supply [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Technology	Ingress Protection	Input Type
Floyd Bell Inc TMB-V86-531-S(S)	95 dB	Pulse Slow	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	5 VDC	24 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	15 mA	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof
Floyd Bell Inc TMB-V86-948-Q(F)	95 dB	Fast Pulse	Quick Connect Tab - 0.250" (6.35mm)	9 V	48 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	10 mA	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	DC
Floyd Bell Inc TMB-V86-531-W(F)	95 dB	Fast Pulse	Wire Leads	5 VDC	24 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	15 mA	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof
Floyd Bell Inc TMB-V86-530-Q(F)	95 dB	Fast Pulse	Quick Connect Tab - 0.250" (6.35mm)	5	30 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	10 mA	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	DC
Floyd Bell Inc TMB-V86-530-W(F)	95 dB	Fast Pulse	Wire Leads	5	30 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	10 mA	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	DC
Floyd Bell Inc TMB-V86-201-Q(S)	95 dB	Pulse Slow	Quick Connect Tab - 0.250" (6.35mm)	30 VDC	120 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	15 mA	1.409 in	35.8 mm	Piezo	IP68 - Dust Tight Waterproof	AC
Floyd Bell Inc TMB-V86-531-S(F)	95 dB	Fast Pulse	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	5 VDC	24 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	15 mA	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof
Floyd Bell Inc TMB-V86-531-Q(F)	95 dB	Fast Pulse	Quick Connect Tab - 0.250" (6.35mm)	5 VDC	24 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	15 mA	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof
Floyd Bell Inc TMB-V86-948-Q(S)	95 dB	Pulse Slow	Quick Connect Tab - 0.250" (6.35mm)	9 V	48 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	10 mA	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	DC
Floyd Bell Inc TMB-V86-201-S(F)	95 dB	Fast Pulse	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	30 VDC	120 V	Indicator Internally Driven	UL UR	31.75 mm	1.25 in	2.9 kHz	Top	2 mA	15 mA	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	AC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.19

Description

General part information

TMB-V86 Series

Buzzers Indicator, Internally Driven Piezo 2 ~ 15mA 2.9kHz 95dB @ 24V, 61cm Panel Mount Wire Leads
