AWHW-200-48RP10

Active

Assmann WSW Components

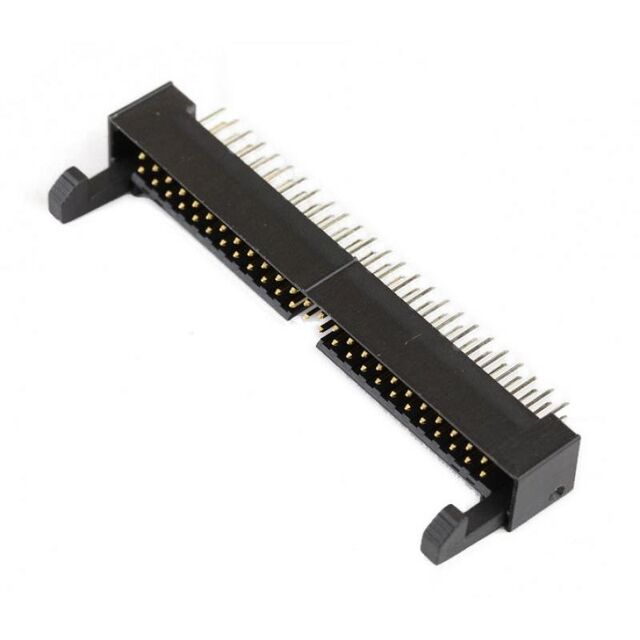

DIN 41651 HEADER MALE THR 48PIN

Search across all available documentation for this part.

Active

Assmann WSW Components

DIN 41651 HEADER MALE THR 48PIN

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW-200-48RP10

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	0.142 in
Contact Length - Mating	3.6 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.638 "
Insulation Height	16.2 mm
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Material	Insulation Height	Insulation Height	Number of Positions Loaded	Fastening Type	Style	Number of Rows	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Shrouding	Termination	Features	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post [x]	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Mounting Type	Insulation Color	Connector Type
Assmann WSW Components AWHW-200-48RP10	Polyamide (PA9T) Nylon 9T Glass Filled	0.638 "	16.2 mm	All	Latch Lock/Eject Hooks Short	Board to Cable/Wire	2	Square	-40 °C	105 ░C	Male Pin	0.079 in	2 mm	UL94 V-0	48	0.142 in	3.6 mm	Shrouded - 4 Wall	Solder	Keying Slot	Flash	3.2 mm	0.126 in	Brass	0.079 in	2 mm	Gold	Through Hole	Black	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2268	$ 5.87

General part information

Connector Header Through Hole 48 position 0.079" (2.00mm)
