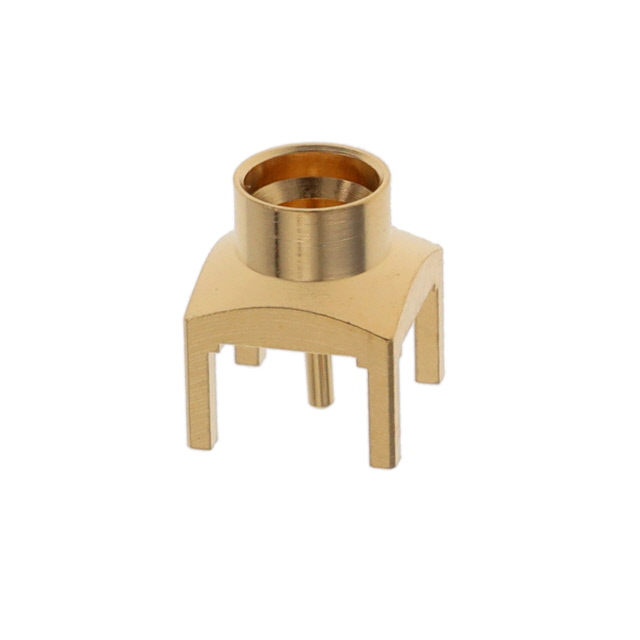

SMP-PF-P-HG-ST-TH2

Active

Samtec Inc.

50 OHM SMP PLUG, THROUGH-HOLE

Search across all available documentation for this part.

Active

Samtec Inc.

50 OHM SMP PLUG, THROUGH-HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	SMP-PF-P-HG-ST-TH2

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Frequency - Max [Max]	Fastening Type	Number of Ports	Dielectric Material	Contact Termination	Center Contact Material	Body Finish	Mounting Type	Features	Shield Termination	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Plating	Impedance	Housing Color
Samtec Inc. SMP-PF-P-HG-ST-TH2	40 GHz	Snap-On	1	Polytetrafluoroethylene (PTFE)	Solder	Brass	Gold	Through Hole	Full Detent	Solder	Male Pin Plug	335 V	-65 ░C	165 °C	Brass	Gold	50 Ohms	Gold
Samtec Inc. SMP-PF-P-HH-ST-EM3		Snap-On	1	Polytetrafluoroethylene (PTFE)	Solder	Brass	Gold	Board Edge Cutout Surface Mount	Full Detent	Solder	Male Pin Plug	335 V	-65 ░C	165 °C	Brass	Gold	50 Ohms	Gold
Samtec Inc. SMP-PF-P-HE-ST-EM3	40 GHz	Snap-On	1	Polytetrafluoroethylene (PTFE)	Solder	Brass	Gold	Board Edge Cutout Surface Mount	Full Detent	Solder	Male Pin Plug	335 V	-65 ░C	165 °C	Brass	Gold	50 Ohms	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Plug, Male Pin 50 Ohms Through Hole Solder
