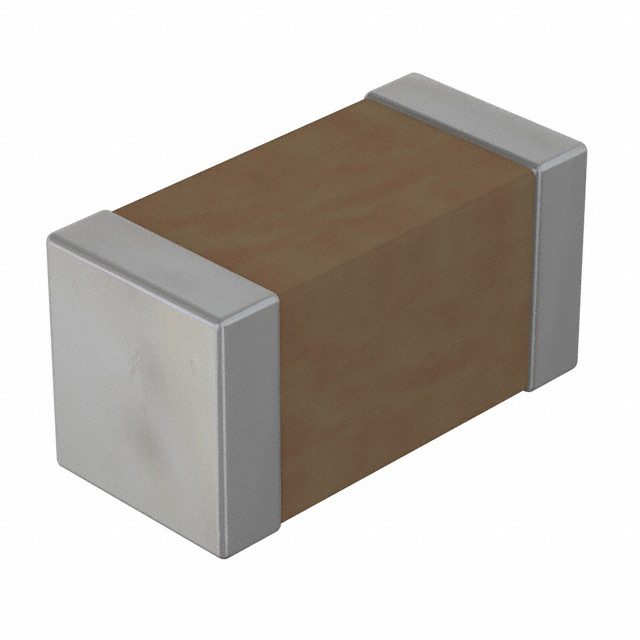

1206BB106K250YX072T

Active

Knowles Novacap

CAP CER 10UF 25V X7R 1206

Search across all available documentation for this part.

Active

Knowles Novacap

CAP CER 10UF 25V X7R 1206

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1206BB106K250YX072T	1206BB Series

Applications	SMPS Filtering	SMPS Filtering
Capacitance	10 µF	10 µF
Features	-	Bonding Mountable, Gold Flash Termination
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC, Epoxy
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Size / Dimension [x]	0.126 "	0.126 "
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Temperature Coefficient	X7R	X7R
Thickness (Max)	1.83 mm	1.83 mm
Thickness (Max) [Max]	0.072 in	0.072 in
Tolerance	10 %	10 %
Voltage - Rated	25 VDC	25 VDC

CAP CER 10UF 25V X7R 1206

Part	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Capacitance	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Package / Case	Tolerance	Thickness (Max) [Max]	Thickness (Max)	Voltage - Rated	Features
Knowles Novacap 1206BB106K250YX072T	-55 °C	125 °C	X7R	10 µF	MLCC, Surface Mount	0.063 in	1.6 mm	0.126 "	3.2 mm	SMPS Filtering	1206 (3216 Metric)	10 %	0.072 in	1.83 mm	25 VDC
Knowles Novacap 1206BB106K250NGX072T	-55 °C	125 °C	X7R	10 µF	Epoxy, MLCC, Surface Mount	0.063 in	1.6 mm	0.126 "	3.2 mm	SMPS Filtering	1206 (3216 Metric)	10 %	0.072 in	1.83 mm	25 VDC	Bonding Mountable, Gold Flash Termination

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF ±10% 25V Ceramic Capacitor X7R 1206 (3216 Metric)
