175101-22-M0.25
ActiveAmphenol RF

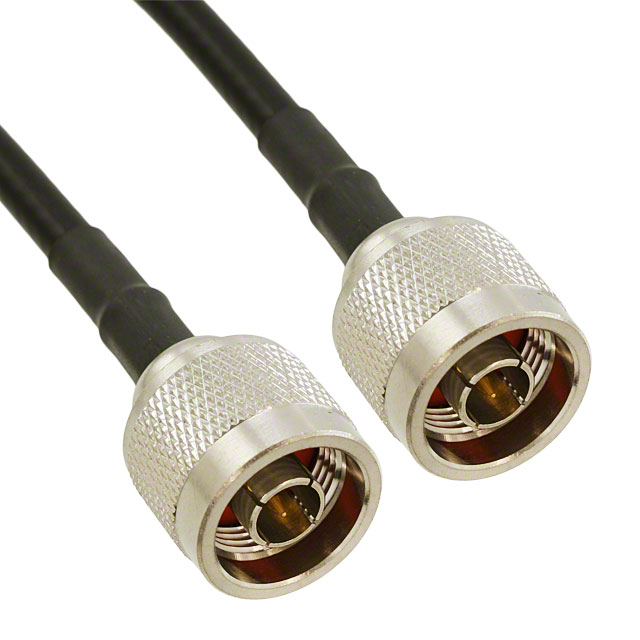

CBL ASSY NTYPE PLUG-PLUG 9.843"
Deep-Dive with AI
Search across all available documentation for this part.
175101-22-M0.25
ActiveAmphenol RF
CBL ASSY NTYPE PLUG-PLUG 9.843"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 175101-22-M0.25 |
|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 240 |
| Color | Black |
| Features | Shielded |
| Length [x] | 9.843 " |
| Length [x] | 250 mm |
| Overall Impedance | 50 Ohms |
| Style | N-Type to N-Type |
175101 Series
| Part | Overall Impedance | 1st Contact Gender | 2nd Contact Gender | 2nd Connector | Style | Color | Cable Type | 1st Connector Mounting Type | Length | Length | 2nd Connector Mounting Type | Features | Cable Impedance | Length | Frequency - Max [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Gray | Hand Formable .141 | Free Hanging (In-Line) | 5 in | 127 mm | Free Hanging (In-Line) | ||||||
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Black | LMR 200 | Free Hanging (In-Line) | 36 in | 91.44 cm | Free Hanging (In-Line) | Shielded | 50 Ohms | ||||
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Black | LMR 240 | Free Hanging (In-Line) | 39.4 in | 1 m | Free Hanging (In-Line) | Shielded | 50 Ohms | 3.3 ft | |||
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Copper | RG-142 | Free Hanging (In-Line) | 24 " | 609.6 mm | Free Hanging (In-Line) | Shielded | 50 Ohms | ||||
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Black | RG-58 | Free Hanging (In-Line) | 48 in | 1200 mm | Free Hanging (In-Line) | Shielded | 50 Ohms | 4 ft | |||
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Black | LMR 400 | Free Hanging (In-Line) | Free Hanging (In-Line) | Shielded | 50 Ohms | 5.8 GHz | |||||
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Gray | Hand Formable .141 | Free Hanging (In-Line) | 3 in | 76.2 mm | Free Hanging (In-Line) | ||||||
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Gray | Hand Formable .085 | Free Hanging (In-Line) | 7 in | 177.8 mm | Free Hanging (In-Line) | ||||||
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Black | LMR 240 | Free Hanging (In-Line) | Free Hanging (In-Line) | Shielded | 50 Ohms | 9.843 " | 250 mm | ||||
Amphenol RF | 50 Ohms | Male | Male | N-Type Plug | N-Type to N-Type | Black | RG-58 | Free Hanging (In-Line) | 29.53 " | 750 mm | Free Hanging (In-Line) | Shielded | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 34.93 | |
Description
General part information
175101 Series
Cable Assembly Coaxial N-Type to N-Type LMR 240 9.843" (250.00mm)
Documents
Technical documentation and resources
No documents available
