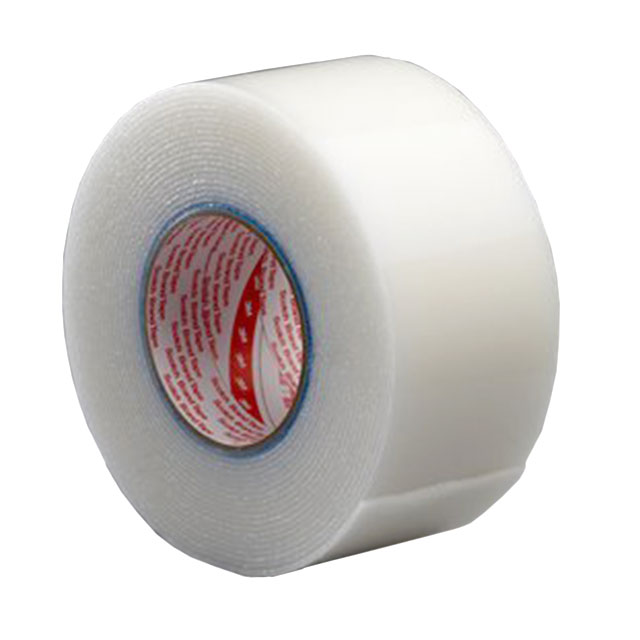

4412N-3"-18YD

Active

3M (TC)

TAPE SEALING TRANSLUCENT 3"X18YD

Search across all available documentation for this part.

Active

3M (TC)

TAPE SEALING TRANSLUCENT 3"X18YD

Technical Specifications

Parameters and characteristics for this part

Specification	4412N-3"-18YD

Adhesive	Acrylic
Backing, Carrier	Copolymer
Color	Translucent
Length	54 ft
Length	16.5 m
Length	18 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Sealing
Temperature Range	93 °C
Temperature Range	200 °F
Thickness	0.04 in
Thickness	1.016 mm
Thickness	1.016 mm
Thickness - Adhesive	0.036 "
Thickness - Adhesive	0.914 mm
Thickness - Adhesive	36 mils
Thickness - Backing, Carrier	0.102 mm
Thickness - Backing, Carrier	4 mils
Thickness - Backing, Carrier	0.004 in
Usage	Sealing
Width [x]	76.2 mm
Width [x]	3 in

Part	Tape Type	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness	Thickness	Thickness	Adhesive	Shelf Life Start	Shelf Life	Usage	Color	Length	Length	Length	Temperature Range	Temperature Range	Width [x]	Width [x]	Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [y]	Width [y]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]
3M (TC) 4412N-3"-18YD	Sealing	4 °C 40 °F	38 °C 100 °F	0.102 mm	4 mils	0.004 in	0.04 in	1.016 mm	1.016 mm	Acrylic	Date of Shipment	24 Months	Sealing	Translucent	54 ft	16.5 m	18 yd	93 °C	200 °F	76.2 mm	3 in	Copolymer	0.036 "	0.914 mm	36 mils
3M (TC) 4412N-2"-18YD	Sealing	4 °C 40 °F	38 °C 100 °F	0.102 mm	4 mils	0.004 in	0.04 in	1.016 mm	1.016 mm	Acrylic	Date of Manufacture	24 Months	Sealing	Translucent	54 ft	16.5 m	18 yd	93 °C	200 °F			Copolymer	0.036 "	0.914 mm	36 mils	2 "	50.8 mm
3M (TC) 4412N-4"-18YD	Sealing	4 °C 39 °F	38 °C 100 °F	0.099 mm	3.9 mils	0.0039 "	0.0394 in	39.4 mils	1 mm	Acrylic	Date of Shipment	24 Months		Natural	54 ft	16.5 m	18 yd			101.6 mm	4 "	Polyester Film	0.0354 "	0.9 mm	35.4 mils			38 °C	21 °C	100 °F	70 °F
