M1BXA-3036J

Active

IDC CABLE - MSR30A/MC34G/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet 891 Series Datasheet +1

M1BXA-3036J

Active

IDC CABLE - MSR30A/MC34G/X

Deep-Dive with AI

Documents3365 Series Datasheet 891 Series Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.41
		10	$ 8.76
		25	$ 7.92
		50	$ 7.34
		100	$ 6.82
		250	$ 6.21
		500	$ 5.80
		1000	$ 5.42

Description

General part information

M1BXA Series

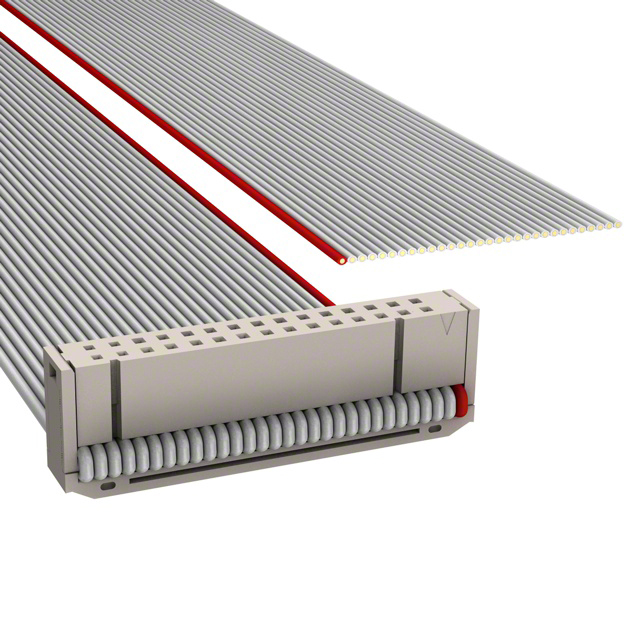

30 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

891 Series Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1BXA-3036J	M1BXA Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Strain Relief	Strain Relief
Length [x]	3 ft	3 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	30	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1BXA Series

IDC CABLE - MSR60A/MC60M/X

Part	Connector Type	Number of Positions	Number of Rows	Length [x]	Length [x]	Color	Cable Termination	Shielding	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch - Cable	Pitch - Cable	Contact Finish	Number of Positions
3M M1BXA-6036R	Socket to Cable	60	2	3 ft	914.4 mm	Multiple, Ribbon	IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold
3M M1BXA-2040K	Socket to Cable	20	2	3.34 ft	1.02 m	Multiple, Twisted Pair (Flat)	IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold
3M M1BXA-1436R	Socket to Cable	14	2	3 ft	914.4 mm	Multiple, Ribbon	IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold
3M M1BXA-4036J	Socket to Cable	40	2	3 ft	914.4 mm		IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold
3M M1BXA-1640K	Socket to Cable		2	3.34 ft	1.02 m	Multiple, Twisted Pair (Flat)	IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold	16
3M M1BXA-1036R	Socket to Cable	10	2	3 ft	914.4 mm	Multiple, Ribbon	IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold
3M M1BXA-3036J	Socket to Cable	30	2	3 ft	914.4 mm		IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold
3M M1BXA-2640K	Socket to Cable	26	2	3.34 ft	1.02 m	Multiple, Twisted Pair (Flat)	IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold
3M M1BXA-4036R	Socket to Cable	40	2	3 ft	914.4 mm	Multiple, Ribbon	IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold
3M M1BXA-1036J	Socket to Cable	10	2	3 ft	914.4 mm		IDC	Unshielded	0.1 in	2.54 mm	0.76 Ám	30 Áin	Strain Relief	0.05 "	1.27 mm	Gold
