Q-2I03B0005003M

Active

Amphenol Custom Cable

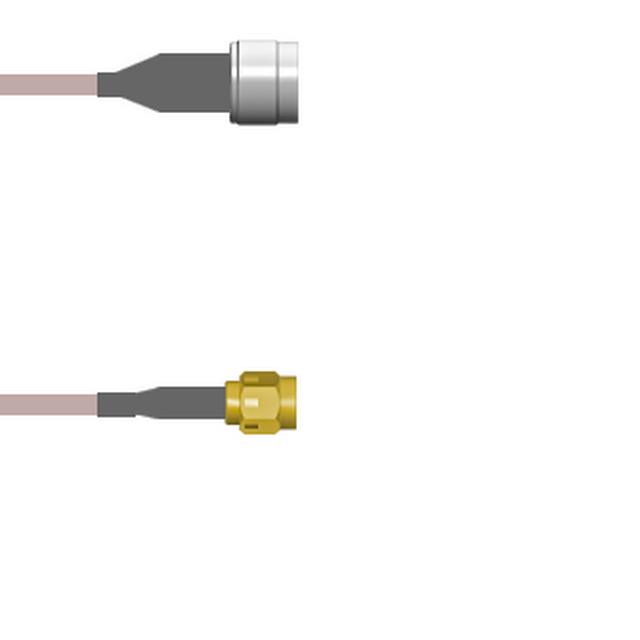

CBL ASSY SMA-NTYPE PLUG-PLG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I03B0005003M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-PLG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I03B0005003M

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2I03B0 Series

Part	2nd Contact Gender	Style	Cable Impedance	Overall Impedance	Frequency - Max [Max]	Length	Length	1st Connector	Connector Impedance	Color	2nd Connector	1st Contact Gender	2nd Connector Mounting Type	Cable Type	Features	1st Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2I03B00030.5M	Male	SMA to N-Type	50 Ohms	50 Ohms	11 GHz	50 cm	19.69 "	SMA Plug	50 Ohms	Black	N-Type Plug	Male	Free Hanging (In-Line)	RG-174	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I03B0005084i	Male	SMA to N-Type	50 Ohms	50 Ohms	11 GHz	2.1 m	84 in	SMA Plug	50 Ohms	Copper	N-Type Plug	Male	Free Hanging (In-Line)	RG-316	Shielded	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-2I03B0005005F	Male	SMA to N-Type	50 Ohms	50 Ohms	3 GHz	1.5 m	5 '	SMA Plug	50 Ohms	Copper	N-Type Plug	Male	Free Hanging (In-Line)	RG-316	Shielded	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-2I03B0003018i	Male	SMA to N-Type	50 Ohms	50 Ohms	11 GHz			SMA Plug	50 Ohms	Black	N-Type Plug	Male	Free Hanging (In-Line)	RG-174	Shielded	Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2I03B0005003M	Male	SMA to N-Type	50 Ohms	50 Ohms	3 GHz	3 m	118.1 in	SMA Plug	50 Ohms	Copper	N-Type Plug	Male	Free Hanging (In-Line)	RG-316	Shielded	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-2I03B0005060i	Male	SMA to N-Type	50 Ohms	50 Ohms	11 GHz	1.5 m	5 '	SMA Plug	50 Ohms	Copper	N-Type Plug	Male	Free Hanging (In-Line)	RG-316	Shielded	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-2I03B0003024i	Male	SMA to N-Type	50 Ohms	50 Ohms	11 GHz	609.6 mm	24 "	SMA Plug	50 Ohms	Black	N-Type Plug	Male	Free Hanging (In-Line)	RG-174	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I03B0005002M	Male	SMA to N-Type	50 Ohms	50 Ohms	3 GHz	2 m	78.7 in	SMA Plug	50 Ohms	Copper	N-Type Plug	Male	Free Hanging (In-Line)	RG-316	Shielded	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-2I03B0003.75M	Male	SMA to N-Type	50 Ohms	50 Ohms	11 GHz	750 mm	29.53 "	SMA Plug	50 Ohms	Black	N-Type Plug	Male	Free Hanging (In-Line)	RG-174	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I03B0005001M	Male	SMA to N-Type	50 Ohms	50 Ohms	3 GHz	1 m	39.4 in	SMA Plug	50 Ohms	Copper	N-Type Plug	Male	Free Hanging (In-Line)	RG-316	Shielded	Free Hanging (In-Line)	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 100.12
		25	$ 93.15
		50	$ 86.18
		100	$ 80.21
		250	$ 75.23

Description

General part information

Q-2I03B0 Series

Cable Assembly Coaxial SMA to N-Type RG-316 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
