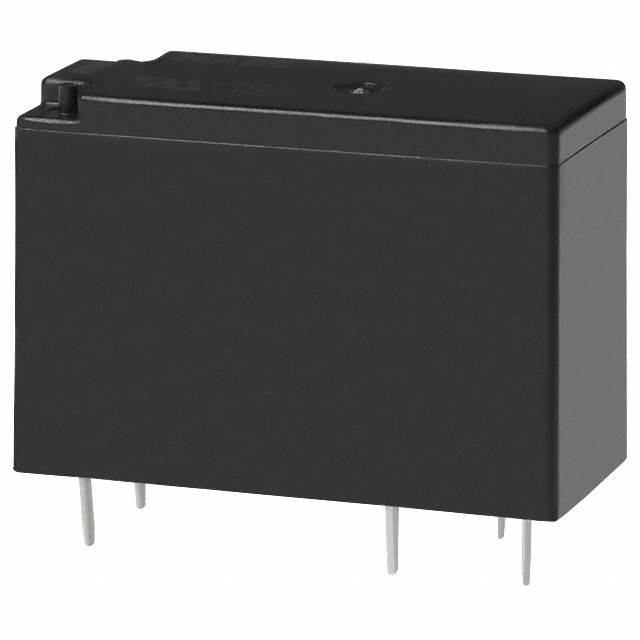

JW2ASN-B-DC12V

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPST 5A 12V

Deep-Dive with AI

DocumentsGeneral Appl Guidelines How to Read Date Codes +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JW2ASN-B-DC12V

Approval Agency	CQC, CSA, VDE, UR
Coil Current	44 mA
Coil Insulation	Class B
Coil Resistance	270 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPST-NO (2 Form A)
Contact Material	Silver Alloy
Contact Rating (Current)	5 A
Load - Max Switching	1250 VA, 150 W
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	PC Pin

JW2AS Series

Part	Approval Agency	Must Operate Voltage	Operate Time	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Must Release Voltage	Coil Resistance	Contact Material	Load - Max Switching	Release Time	Termination Style	Seal Rating	Coil Voltage	Coil Current	Switching Voltage [Max]	Coil Type	Contact Rating (Current)	Relay Type	Coil Insulation
Panasonic Electric Works JW2ASN-B-DC12V	CQC CSA UR VDE	8.4 VDC	15 ms	DPST-NO (2 Form A)	85 °C	-40 °C	Through Hole	1.2 VDC	270 Ohms	Silver Alloy	150 W 1250 VA	5 ms	PC Pin	Sealed - Fully	12 VDC	44 mA	30 VDC 250 VAC	Non Latching	5 A	General Purpose	Class B
Panasonic Electric Works JW2ASN-DC9V	CQC CSA UR VDE	6.3 VDC	15 ms	DPST-NO (2 Form A)	60 °C	-40 °C	Through Hole	0.9 VDC	155 Ohms	Silver Alloy	150 W 1250 VA	5 ms	PC Pin	Sealed - Fully	9 VDC	58 mA	30 VDC 250 VAC	Non Latching	5 A	General Purpose	Class E
Panasonic Electric Works JW2ASN-B-DC48V	CQC CSA UR VDE	33.6 VDC	15 ms	DPST-NO (2 Form A)	85 °C	-40 °C	Through Hole	4.8 VDC	4.4 kOhms	Silver Alloy	150 W 1250 VA	5 ms	PC Pin	Sealed - Fully	48 VDC	11 mA	30 VDC 250 VAC	Non Latching	5 A	General Purpose	Class B
Panasonic Electric Works JW2ASN-B-DC9V	CQC CSA UR VDE	6.3 VDC	15 ms	DPST-NO (2 Form A)	85 °C	-40 °C	Through Hole	0.9 VDC	155 Ohms	Silver Alloy	150 W 1250 VA	5 ms	PC Pin	Sealed - Fully	9 VDC	58 mA	30 VDC 250 VAC	Non Latching	5 A	General Purpose	Class B
Panasonic Electric Works JW2ASN-DC24V	CQC CSA UR VDE	16.8 VDC	15 ms	DPST-NO (2 Form A)	60 °C	-40 °C	Through Hole	2.4 VDC		Silver Alloy	150 W 1250 VA	5 ms	PC Pin	Sealed - Fully	24 VDC	22 mA	30 VDC 250 VAC	Non Latching	5 A	General Purpose	Class E
Panasonic Electric Works JW2ASN-B-DC6V	CQC CSA UR VDE	4.2 VDC	15 ms	DPST-NO (2 Form A)	85 °C	-40 °C	Through Hole	0.6 VDC	68 Ohms	Silver Alloy	150 W 1250 VA	5 ms	PC Pin	Sealed - Fully		88 mA	30 VDC 250 VAC	Non Latching	5 A	General Purpose	Class B
Panasonic Electric Works JW2ASN-DC24V-TUV	CQC CSA UR VDE	16.8 VDC	15 ms	DPST-NO (2 Form A)	60 °C	-40 °C	Through Hole	2.4 VDC		Silver Alloy	150 W 1250 VA	5 ms	PC Pin	Sealed - Fully	24 VDC	22 mA	30 VDC 250 VAC	Non Latching	5 A	General Purpose	Class E
Panasonic Electric Works JW2ASN-B-DC18V	CQC CSA UR VDE	12.6 VDC	15 ms	DPST-NO (2 Form A)	85 °C	-40 °C	Through Hole	1.8 VDC	611 Ohms	Silver Alloy	150 W 1250 VA	5 ms	PC Pin	Sealed - Fully	18 VDC	29 mA	30 VDC 250 VAC	Non Latching	5 A	General Purpose	Class B
Panasonic Electric Works JW2ASN-DC6V	CQC CSA UR VDE	4.2 VDC	15 ms	DPST-NO (2 Form A)	60 °C	-40 °C	Through Hole	0.6 VDC	68 Ohms	Silver Alloy	150 W 1250 VA	5 ms	PC Pin	Sealed - Fully		88 mA	30 VDC 250 VAC	Non Latching	5 A	General Purpose	Class E
