Specification	XEGAPR-H0-0000-000-000000M3001

Color	Red
Current - Max	3 A
Current - Test	1 A
Height - Seated (Max)	0.044 in
Luminous Flux	46 lm
Mounting Type	Surface Mount
Package / Case	No Lead, 3-SMD
Package Name	3-SMD
Size / Dimension Length	0.081 in
Size / Dimension Width	0.063 in
Temperature - Test	25 °C
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	3.05 V

XLamp Element G Series

Part	Luminous Flux	Luminous Flux (Minimum)	Luminous Flux (Maximum)	Current - Test	Size / Dimension Length	Size / Dimension Width	Current - Max	Height - Seated (Max)	Temperature - Test	Lumens/Watt	Package Name	Voltage - Forward (Vf) (Typ)	Color	Package / Case	Mounting Type	Viewing Angle	Thermal Resistance of Package	CRI (Color Rendering Index)	Flux (Maximum)	Flux (Typical)	Flux (Minimum)	Flux	CCT (K)	CCT Description	Wavelength (Maximum)	Wavelength	Wavelength (Minimum)	Wavelength (Nominal)

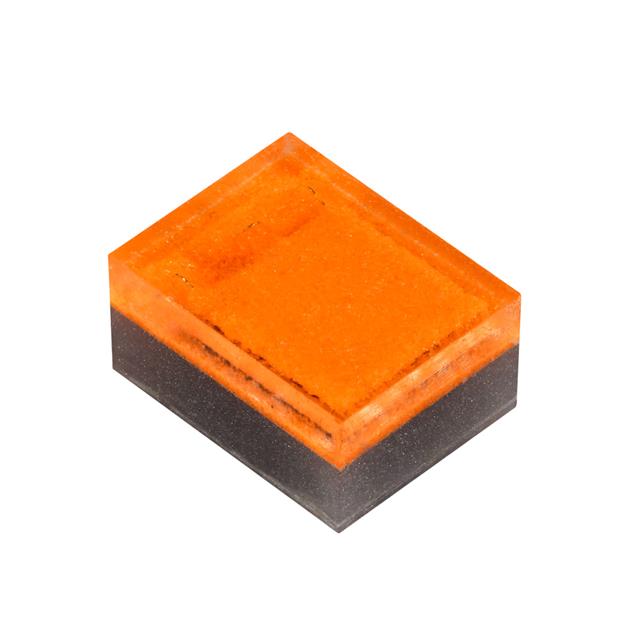

CreeLED, Inc. XEGAPO-H2-0000-000-000000S4001
CreeLED, Inc. XEGAPM-H2-0000-000-000000V3002	430 lm	420 lm	440 lm	1 A	0.081 in	0.063 in	3 A	0.044 in	85 °C	141 lm/W	2-SMD	3.05 V	Mint	2-SMD No Lead	Surface Mount	125 °
CreeLED, Inc. XEGAPR-H0-0000-000-000000M3001	46 lm			1 A	0.081 in	0.063 in	3 A	0.044 in	25 °C		3-SMD	3.05 V	Red	3-SMD No Lead	Surface Mount	125 °
CreeLED, Inc. XEGAWT-H2-0000-000-00000BU430E				1 A	0.081 in	0.063 in	3 A	0.044 in		117 lm/W	2-SMD	3 V	Warm White	2-SMD No Lead	Surface Mount	125 °	2.4 °C/W	80	360 lm	350 lm	340 lm	373 lm	3000 K	5-Step MacAdam Ellipse
CreeLED, Inc. XEGACY-H0-0000-000-000000T4003	250 lm	240 lm	260 lm	1 A	0.081 in	0.063 in	3 A	0.044 in	25 °C	82 lm/W	2-SMD	3.05 V	Cyan	2-SMD No Lead	Surface Mount	140 °									510 nm	500 nm	490 nm	500 nm
CreeLED, Inc. XEGAWT-H0-0000-000-00000BU50E3				1 A	0.081 in	0.063 in	3 A	0.044 in		123 lm/W	2-SMD	3 V	Cool White	2-SMD No Lead	Surface Mount	125 °	2.4 °C/W	80	380 lm	370 lm	360 lm	395 lm	5000 K	5-Step MacAdam Ellipse
CreeLED, Inc. XEGAWT-H0-0000-000-00000BT635E				1 A	0.081 in	0.063 in	3 A	0.044 in		97 lm/W	3-SMD	3 V	Warm White	3-SMD No Lead	Surface Mount	125 °		70	300 lm	290 lm	280 lm		3500 K	5-Step MacAdam Ellipse
CreeLED, Inc. XEGAWT-H0-0000-000-00000BU40E5				1 A	0.081 in	0.063 in	3 A	0.044 in		117 lm/W	3-SMD	3 V	Neutral White	3-SMD No Lead	Surface Mount	125 °		70	360 lm	350 lm	340 lm		4000 K
CreeLED, Inc. XEGAWT-H2-0000-000-00000HT645G				1 A	0.081 in	0.063 in	3 A	0.044 in			3-SMD	3 V	White	3-SMD No Lead	Surface Mount	125 °		80
CreeLED, Inc. XEGACY-H2-0000-000-000000T1003	190 lm	180 lm	200 lm	1 A	0.081 in	0.063 in	3 A	0.044 in	25 °C	63 lm/W	2-SMD	3 V	Cyan	2-SMD No Lead	Surface Mount	125 °									510 nm	503 nm	495 nm	503 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

XEGAPR-H0-0000-000-000000M3001 | Datasheet
