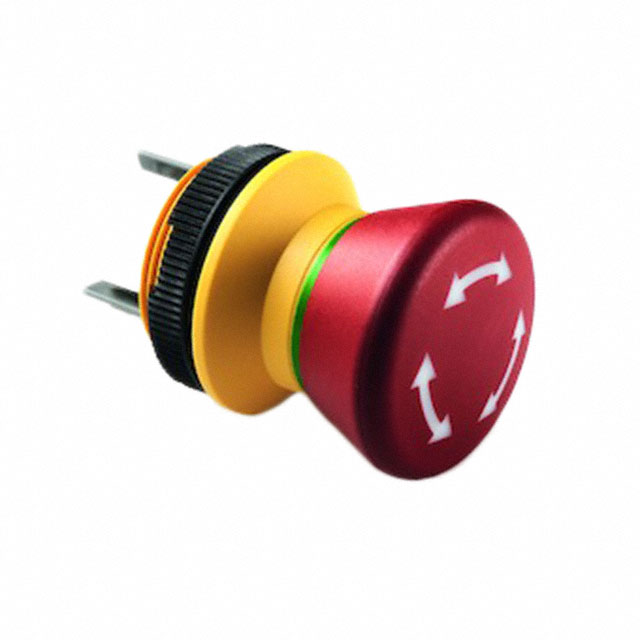

1.15.105.011/0000

Obsolete

RAFI USA

SW E-STOP TWIST RESET 2.5A 250V

Search across all available documentation for this part.

Obsolete

RAFI USA

SW E-STOP TWIST RESET 2.5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1.15.105.011/0000

Circuit	DPST-NC
Current Rating (Amps)	2.5 A
Features	Status Indicator
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Reset Operation	Twist
Switch Function	On-Off
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	240 V

SW E-STOP TWIST RESET 2.5A 250V

Part	Ingress Protection	Features	Reset Operation	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Switch Function	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Panel Cutout Dimensions [diameter]	Current Rating (Amps)
RAFI USA 1.15.105.011/0000	IP65 - Dust Tight, Water Resistant	Status Indicator	Twist	250 V	0.11 in	Quick Connect, Solder	2.8 mm	On-Off	240 V	Panel Mount, Front	70 °C	-25 °C	DPST-NC	22.3 mm	2.5 A
