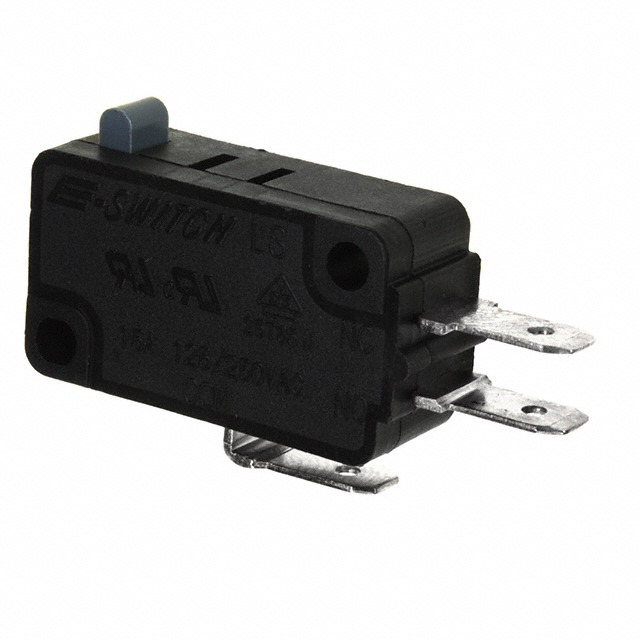

LS0851500F160C1A

Active

E-Switch

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

LS0851500F160C1A

Active

E-Switch

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LS0851500F160C1A

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	15 A
Electrical Life	50000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pretravel	2 mm
Pretravel	0.08 in
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

LS0851 Series

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Release Force	Circuit	Switch Function	Mounting Type	Mechanical Life	Pretravel	Pretravel	Actuator Type	Termination Style	Current Rating (Amps)	Operating Position	Operating Position	Operating Force	Voltage Rating - DC
E-Switch LS0851503F025C1B	50000 Cycles	-25 °C	85 °C	125 V	10 gf	SPST-NC	On-Mom	Chassis Mount	1000000 Cycles	0.335 in	8.5 mm	Lever Straight	Quick Connect - 0.187" (4.7mm)	15 A	15.3 mm	0.602 "
E-Switch LS0851506F045S1A	50000 Cycles	-25 °C	85 °C	125 V	15 gf	SPDT	On-Mom	Chassis Mount	1000000 Cycles	0.218 in	5.5 mm	Lever Roller	Solder Lug	15 A	20.7 mm	0.815 in
E-Switch LS085R101F100C2A	50000 Cycles	-25 °C	85 °C	20 V	30 gf	SPDT	On-Mom	Chassis Mount	1000000 Cycles	0.08 in	2 mm	Lever Straight	Quick Connect - 0.250" (6.3mm)	0.4 VA	15.3 mm	0.602 "	100 gf	20 V
E-Switch LS0851504F050C2A	50000 Cycles	-25 °C	85 °C	125 V	20 gf	SPDT	On-Mom	Chassis Mount	1000000 Cycles	0.205 in	5.2 mm	Lever Simulated Roller	Quick Connect - 0.250" (6.3mm)	15 A	19 mm	0.748 "	50 gf
E-Switch LS0851500F250S1C	50000 Cycles	-25 °C	85 °C	125 V	50 gf	SPST-NO	Off-Mom	Chassis Mount	1000000 Cycles	0.08 in	2 mm	Round (Pin Plunger)	Solder Lug	15 A	14.7 mm	0.579 in	0.25 kgf
E-Switch LS0851502F120V1A	50000 Cycles	-25 °C	85 °C	125 V		SPDT	On-Mom	Through Hole Right Angle	1000000 Cycles	0.161 in	4.1 mm	Lever Straight	PC Pin	15 A	15.5 mm	0.61 in	120 gf
E-Switch LS0851500F160C1A	50000 Cycles	-25 °C	85 °C	125 V		SPDT	On-Mom	Chassis Mount	1000000 Cycles	0.08 in	2 mm	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	15 A	14.7 mm	0.579 in
E-Switch LS0851502F045S1AREDBLK		-25 °C	85 °C	125 V	20 gf	SPDT	On-Mom	Chassis Mount	1000000 Cycles	0.161 in	4.1 mm	Lever Straight	Solder Lug	15 A	15.5 mm	0.61 in
E-Switch LS0851500F160V2BMK	50000 Cycles	-25 °C	85 °C	125 V		SPST-NC	On-Mom	Through Hole Right Angle	1000000 Cycles	0.08 in	2 mm	Round (Pin Plunger)	PC Pin	15 A	14.7 mm	0.579 in
E-Switch LS0851500F250V1A	50000 Cycles	-25 °C	85 °C	125 V	50 gf	SPDT	On-Mom	Through Hole Right Angle	1000000 Cycles	0.08 in	2 mm	Round (Pin Plunger)	PC Pin	15 A	14.7 mm	0.579 in	0.25 kgf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.51
		10	$ 1.39
		25	$ 1.31
		50	$ 1.28
		100	$ 1.02

Description

General part information

LS0851 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available
