Part	Fastening Type	Contact Type	Number of Positions	Insulation Material	Number of Rows	Contact Termination	Connector Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Color	Features	For Use With/Related Products	Accessory Type	Cable Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Wire Type	Current Rating	Contact Material	Contact Length - Post	Insulation Height	Termination	Voltage Rating	Insulation Color	Number of Positions Loaded	Contact Finish - Post	Ingress Protection	Shrouding	Style	Contact Shape	Contact Finish - Mating
McGill Microwave Systems ATM04-3P-SF01	Latch Holder	Male Pin	3	Thermoplastic	1	Crimp	Receptacle	Free Hanging (In-Line)	125 °C	-55 °C	Gray	Cap (Cover) IP68 IP69K Sealed

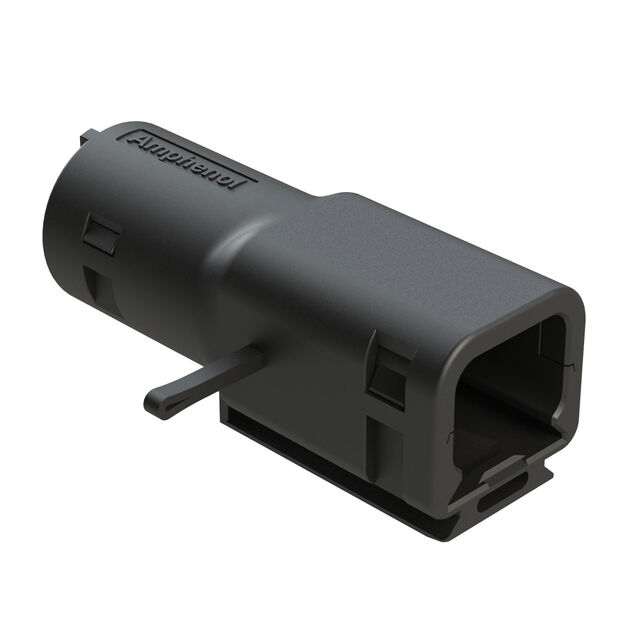

McGill Microwave Systems ATMBS-021-0205			2										ATM Series	Backshell

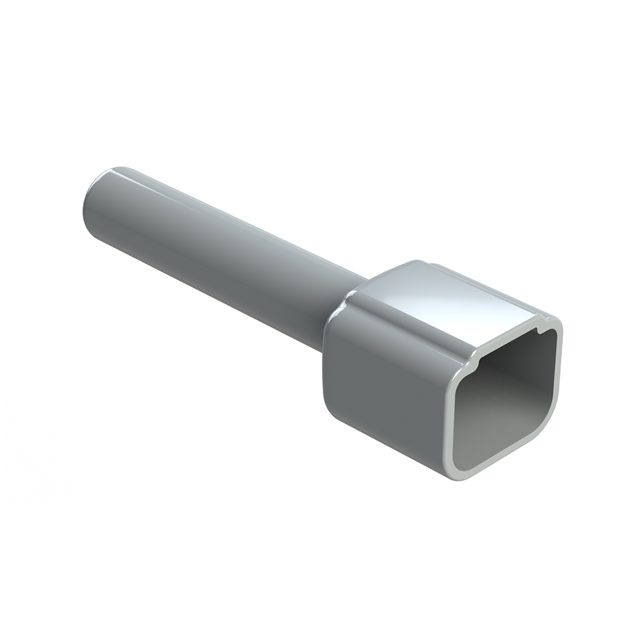

McGill Microwave Systems ATM8P-BT			8										ATM Series	Boot
McGill Microwave Systems ATM04-12PC-PM31	Push-Pull	Male Pin	12		2		Receptacle	Panel Mount			Green				Crimp	20.5 AWG	16 AWG	Discrete
McGill Microwave Systems ATM06-12SB-SF1BK	Latch Lock	Female Socket	12	Thermoplastic	2	Crimp	Plug	Free Hanging (In-Line)	125 °C	-55 °C	Black	Cap (Cover) IP68 IP69K Sealed
McGill Microwave Systems ATM15-12PA-BM04	Latch Holder	Male Pin	12	Thermoplastic	2		Receptacle	Through Hole	125 °C	-55 °C		Board Guide Mating Flange Mounting Flange Potting Wall							7.5 A	Copper Alloy	0.12 in	1.189 in	Solder	250 V	Gray	All	Tin	IP67	Shrouded - 4 Wall	Board Cable/Wire	Circular	Tin
McGill Microwave Systems ATM13-6P-BM04	Latch Holder	Male Pin	6	Thermoplastic	2		Receptacle	Right Angle Through Hole	125 °C	-55 °C		Board Guide Mating Flange Mounting Flange Potting Wall							7.5 A	Copper Alloy	0.12 in	1.303 in	Solder	250 V	Gray	All	Tin	IP67	Shrouded - 4 Wall	Board Cable/Wire	Circular	Tin
McGill Microwave Systems ATM06-2S-R120GRY	Latch Lock	Female Socket	2		1		Plug	Free Hanging (In-Line)			Gray	Resistor			Crimp	22 AWG	16 AWG	Discrete
McGill Microwave Systems ATM04-12PB-SF1BK	Latch Holder	Male Pin	12	Thermoplastic	2	Crimp	Receptacle	Free Hanging (In-Line)	125 °C	-55 °C	Black	Cap (Cover) IP68 IP69K Sealed

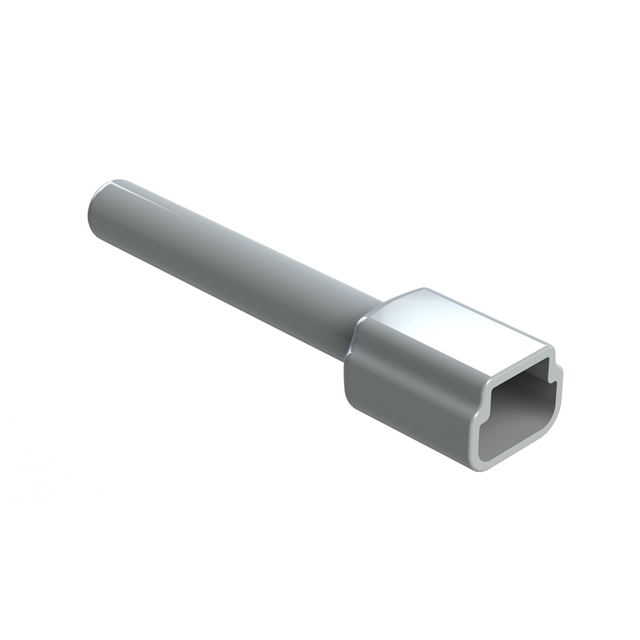

McGill Microwave Systems ATM3P-BT			3										ATM Series	Boot
