1410135-2

Active

TE Connectivity AMP Connectors

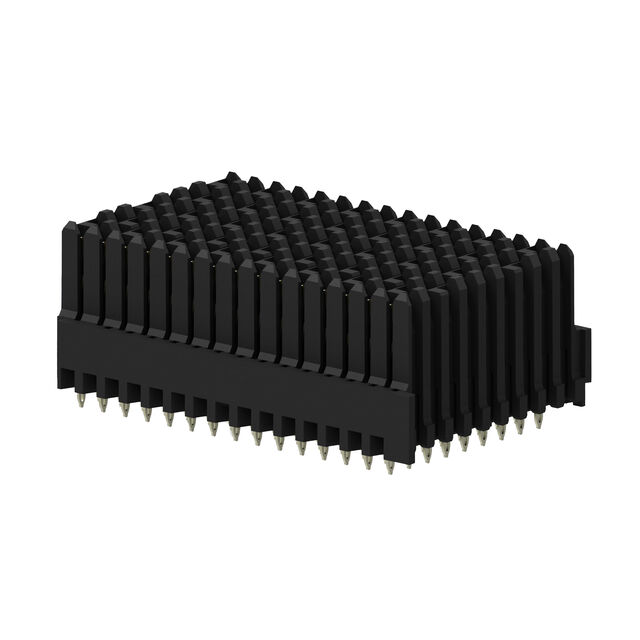

CONN RCPT VITA41 135POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT VITA41 135POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1410135-2

Color	Black
Connector Style	VITA 41, Center
Connector Type	Receptacle, Female Blade Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	15
Number of Positions	135
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit

CONN RCPT VITA41 135POS PCB

Part	Contact Finish	Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Usage	Connector Style	Color	Number of Columns	Material Flammability Rating	Number of Positions	Connector Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded
TE Connectivity AMP Connectors 1410135-2	Gold	Press-Fit	Through Hole	105 ░C	-55 °C	9	Backplane	Center, VITA 41	Black	15	UL94 V-0	135	Receptacle, Female Blade Sockets	0.071 in	1.8 mm	50 µin	1.27 µm	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1088	$ 19.86

General part information

135 Connector Receptacle, Female Blade Sockets Through Hole Black VITA 41, Center
