GSF1.1002.01

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

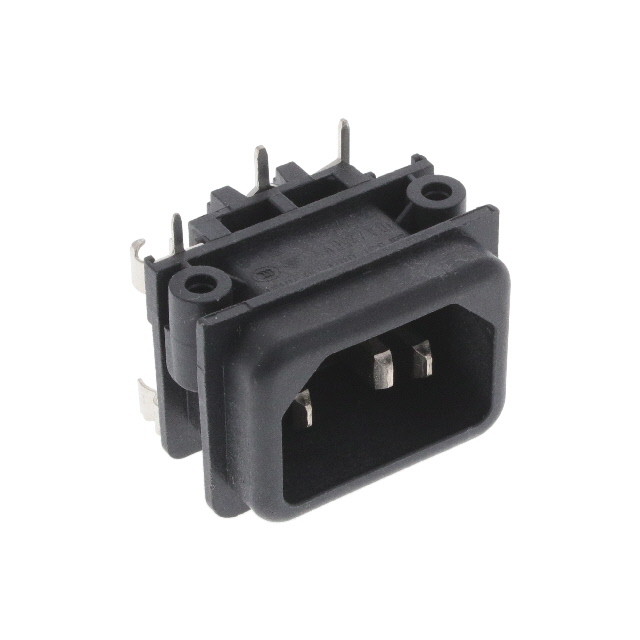

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GSF1.1002.01	GSF1.1002 Series

Accomodates a Fuse	True	True
Approval Agency	CCC, UL, CSA, ENEC	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Mounting Hardware	Mounting Hardware
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.3 mm	30.3 mm
Panel Cutout Dimensions [y]	22.3 mm	22.3 mm
Panel Thickness	0.236 in	0.079 - 0.236 in
Panel Thickness	6 mm	2 - 6 mm
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Termination	Solder	Solder
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Connector Style	Current Rating - Appliance Inlet	Mounting Type	Voltage Rating - Appliance Inlet	Features	Filter Type	Ingress Protection	Termination	Panel Thickness [custom]	Panel Thickness [custom]	Material Flammability Rating	Connector Type	Fuse Holder, Drawer	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
SCHURTER Inc. GSF1.1002.31	CCC, CSA, ENEC, UL	IEC 320-C14	10 A	Panel Mount, Flange, Through Hole, Right Angle	250 VAC	Mounting Hardware	Unfiltered - Commercial	IP40	Solder	0.059 in	1.5 mm	UL94 V-0	Receptacle, Male Blades - Module	Fuse Holder
SCHURTER Inc. GSF1.1002.61	CCC, CSA, ENEC, UL	IEC 320-C14	10 A	Panel Mount, Flange, Through Hole, Right Angle	250 VAC	Mounting Hardware	Unfiltered - Commercial	IP40	Solder			UL94 V-0	Receptacle, Male Blades - Module	Fuse Holder	3 mm	0.118 in
SCHURTER Inc. GSF1.1002.41	CCC, CSA, ENEC, UL	IEC 320-C14	10 A	Panel Mount, Flange, Through Hole, Right Angle	250 VAC	Mounting Hardware	Unfiltered - Commercial	IP40	Solder			UL94 V-0	Receptacle, Male Blades - Module	Fuse Holder	2 mm	0.079 in
SCHURTER Inc. GSF1.1002.01	CCC, CSA, ENEC, UL	IEC 320-C14	10 A	Panel Mount, Flange, Through Hole, Right Angle	250 VAC	Mounting Hardware	Unfiltered - Commercial	IP40	Solder			UL94 V-0	Receptacle, Male Blades - Module	Fuse Holder	6 mm	0.236 in	30.3 mm	22.3 mm
