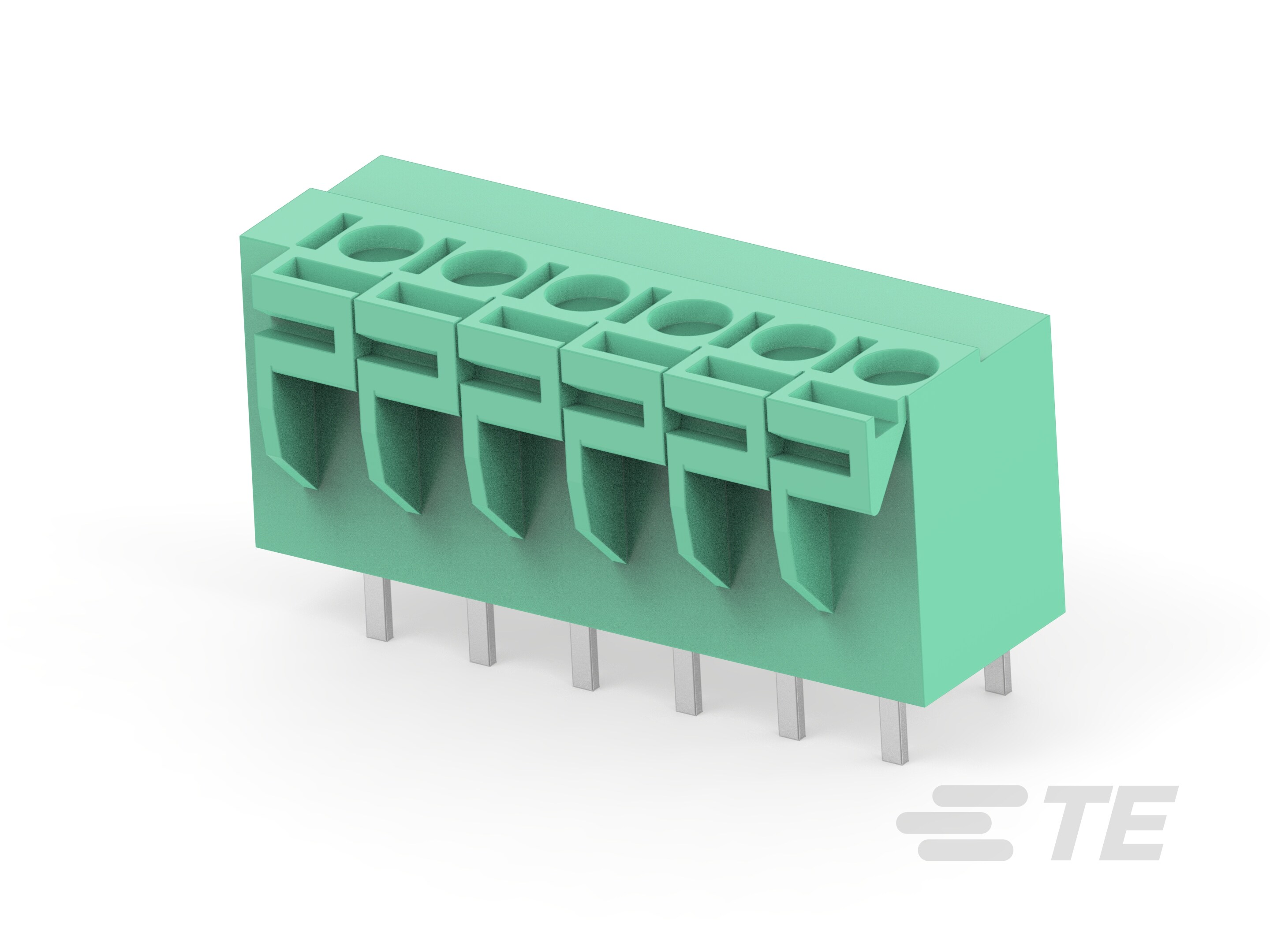

Specification	1776260-6

Clamp Material - Plating	Steel, Stainless
Color	Green
Contact Material	Brass
Current	10 A
Housing Material	Nylon 6/6, Polyamide, PA66
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	5.08 mm
Plating	Nickel Tin Plated
Positions Per Level	6
Voltage	300 V
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	14 AWG
Wire Termination	Leg Spring, Screwless, Push-In Spring

1776260 Series

Part	Housing Material	Plating	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Clamp Material - Plating	Color	Mounting Type	Mating Orientation	Number of Levels	Positions Per Level	Wire Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Current	Pitch	Voltage
TE Connectivity AMP Connectors 1776260-8	Nylon 6/6 PA66 Polyamide	Nickel Tin Plated	Brass	-55 °C	105 °C	Steel Stainless	Green	Through Hole	Vertical with Board	1	8	Leg Spring Push-In Spring Screwless	14 AWG	22 AWG	10 A	5.08 mm	300 V
TE Connectivity AMP Connectors 1-1776260-0	Nylon 6/6 PA66 Polyamide	Nickel Tin Plated	Brass	-55 °C	105 °C	Steel Stainless	Green	Through Hole	Vertical with Board	1	10	Leg Spring Push-In Spring Screwless	14 AWG	22 AWG	10 A	5.08 mm	300 V
TE Connectivity AMP Connectors 1776260-6	Nylon 6/6 PA66 Polyamide	Nickel Tin Plated	Brass	-55 °C	105 °C	Steel Stainless	Green	Through Hole	Vertical with Board	1	6	Leg Spring Push-In Spring Screwless	14 AWG	22 AWG	10 A	5.08 mm	300 V
TE Connectivity AMP Connectors 1776260-5	Nylon 6/6 PA66 Polyamide	Nickel Tin Plated	Brass	-55 °C	105 °C	Steel Stainless	Green	Through Hole	Vertical with Board	1	5	Leg Spring Push-In Spring Screwless	14 AWG	22 AWG	10 A	5.08 mm	300 V
TE Connectivity AMP Connectors 1-1776260-2	Nylon 6/6 PA66 Polyamide	Nickel Tin Plated	Brass	-55 °C	105 °C	Steel Stainless	Green	Through Hole	Vertical with Board	1	12	Leg Spring Push-In Spring Screwless	14 AWG	22 AWG	10 A	5.08 mm	300 V
TE Connectivity AMP Connectors 1776260-2	Nylon 6/6 PA66 Polyamide	Nickel Tin Plated	Brass	-55 °C	105 °C	Steel Stainless	Green	Through Hole	Vertical with Board	1	2	Leg Spring Push-In Spring Screwless	14 AWG	22 AWG	10 A	5.08 mm	300 V
TE Connectivity AMP Connectors 1776260-4	Nylon 6/6 PA66 Polyamide	Nickel Tin Plated	Brass	-55 °C	105 °C	Steel Stainless	Green	Through Hole	Vertical with Board	1	4	Leg Spring Push-In Spring Screwless	14 AWG	22 AWG	10 A	5.08 mm	300 V
